- Dimensions
- How to order
- Features

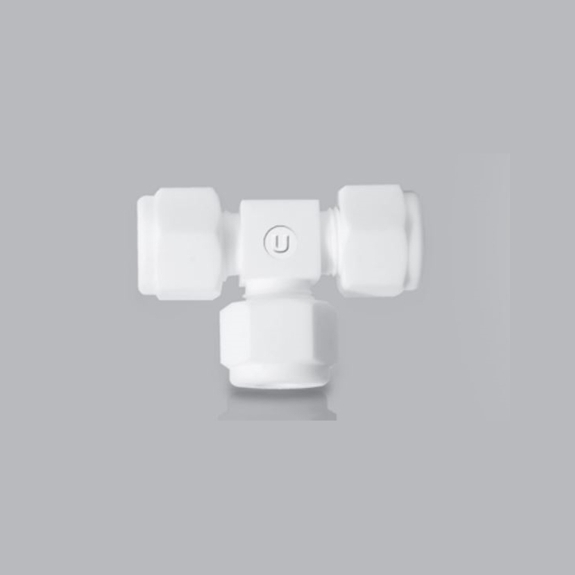

Dimensions
Connects Fractional Tube | Connects Metric Tube | |||||||||||||
| Part No. | Tube O.D. T(inch) | Dimensions (mm) | Part No. | Tube O.D. T | Dimensions (mm) | |||||||||
| E (Min) | h | H | F | L | E (Min) | h | H | F | L | |||||
| UUT-04-TF | 1/4 | 4.8 | 15.87 | 15.87 | 15.2 | 28.7 | UUT-M06-TF | 6 | 4.8 | 15.87 | 15.87 | 15.2 | 28.7 | |
| UUT-06-TF | 3/8 | 7.0 | 20.63 | 20.63 | 17.0 | 31.2 | UUT-M08-TF | 8 | 6.4 | 17.46 | 17.46 | 16.2 | 31.1 | |
| UUT-08-TF | 1/2 | 10.0 | 25.40 | 25.40 | 22.9 | 36.8 | UUT-M10-TF | 10 | 8.0 | 19.05 | 19.05 | 17.2 | 31.6 | |
| UUT-M12-TF | 12 | 9.5 | 25.40 | 25.40 | 22.9 | 36.8 | ||||||||
How to order
UNILOK PTFE fittings are ordered by part number as shown below.
Example: The following part number, UMC-0404N-TF is designated for Male Connector, 1/4"O.D. x 1/4" M-NPT, PTFE.
| U | MC | - | 04 | 04 | N | - | TF |
| UNILOK Tube Fittings | Fitting Type | Tube O.D. | Pipe Size | Thread Type | PTFE Materials | ||
| Fractional(Inch) Tube O.D. Designation | Pipe Size Designation (NPT or ISO7/1-PT) | |||||||||||
| Tube O.D. | inch | 1/4 | 3/8 | 1/2 | Pipe Size | 1/4 | 3/8 | 1/2 | ||||
| mm | 6.35 | 9.52 | 12.70 | Designator | 04 | 06 | 08 | |||||
| Designator | 04 | 06 | 08 | |||||||||
| Thread Type Designation | ||||||||||||
| Metric Tube O.D. Designation | Thread Type | Designator | ||||||||||
| Tube O.D. | mm | 6 | 8 | 10 | 12 | NPT | National Standard Pipe Thread | N | ||||
| Designator | M06 | M08 | M10 | M12 | ISO 7/1 | Taper Pipe Thread | R | |||||
Features
Maximum working pressure: 125 psi (8.6 bar)
Maximum working temperature: 100℃ (212℉)
Standard type fitting with a simple structure and compact design. Easy assembly taper swaging sealing system. Applicable sizes:
1/4" ~ 1/2" O.D. (6mm ~ 12mm O.D.).
Applications
Ultrapure or corrosive chemical applications.
Cleaning
UNILOK PTFE fittings are free from machine oils, loose particles, and grease throughout the close cleaning process.
Special cleaning for high-purity applications is available upon request.
