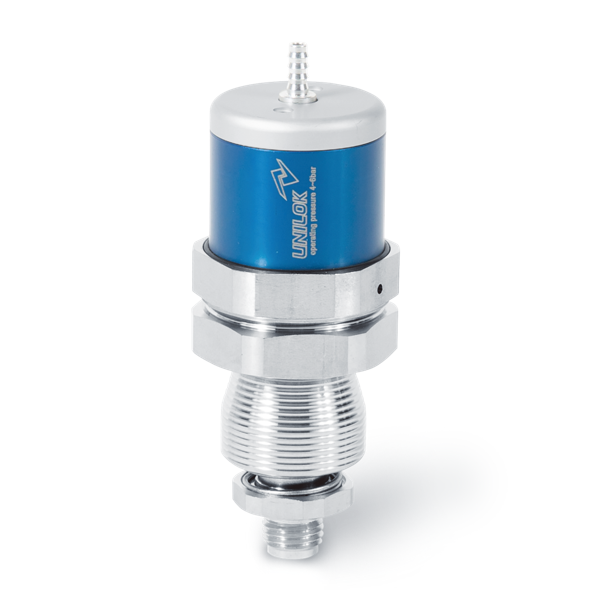

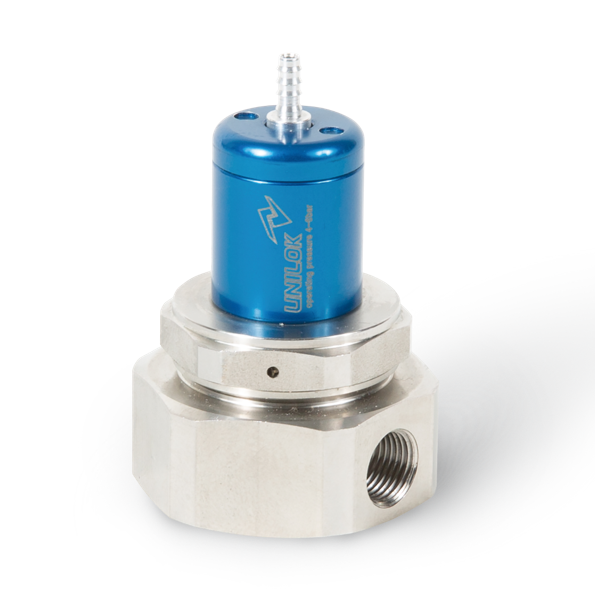

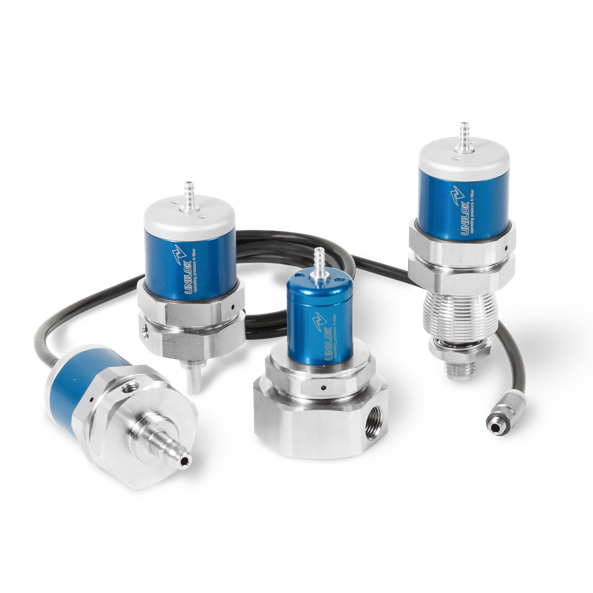

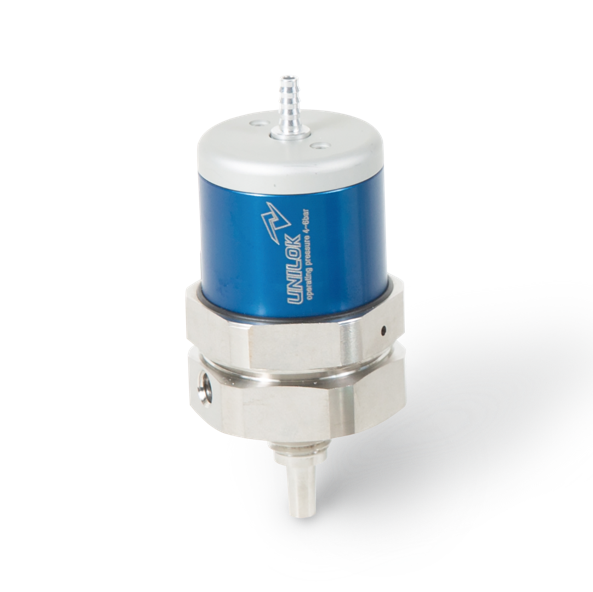

VCDA series
Agile Valve
カテゴリー
- UHP | Valves | Agile Valve
PDF 다운로드
- How To Order
- Specification
- Features
How To Order
| VCDA | C | - | F02R | F02R | H2.3 | - | SL |
| ① Series | ② Type | ③ Inlet | ④ Outlet | ⑤ Outlet Orifice | ⑥ Material |
| ①Series | ③Inlet | ④Outlet | |||||||||||||||
| VCDA | Agile Valve | F05M | M5 Female | Inlet
Orifice Ø2.8 | F05M | M5 Female | UP To Ø2.8 | ||||||||||
| F02R | 1/8” PT Female | UP To Ø5 | |||||||||||||||
| ②Type | J | 1/8” PT Female | Inlet
Orifice Ø4.2 | F06U | 1/8” UNF Male | UP To Ø3.4 | |||||||||||
| T | 토출형 | ||||||||||||||||
| J | 주액형 | ⑤Outlet Orifice | |||||||||||||||
| H2.3 | Ø2.3 | ||||||||||||||||
| |||||||||||||||||
Specification
| Orifice Size | 0.3~4.2mm | ||
| Actuator Pressure Rating | 4~6 bar (60~90 psig) | ||
| Max. Working Pressure | 3 bar (43.5 psig) | ||
| Response Time | 10ms | ||
| Operating Temperature | -10~80 |
Features
· Accurate and constant flow rate.
· Various orifices can be applied.
· Up to 30 million cycles of durability.
· Fast response speed.
· PTFE diaphragm material used.
