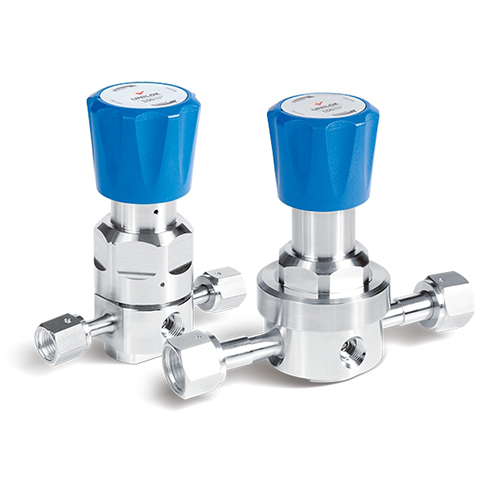

RCE02 Series - For Utility
RCE02 Series(Regulator)
카테고리
- UHP | Regulator | RCE | RCE02
PDF 다운로드
- Dimensions
- How To Order
- Specification
- Features
Dimensions
| Part Number | End Connection | Dimensions(mm) | ||
| Inlet | Outlet | L ± 1 | ||
| RCE02 | U-06T | 3/8” UNILOK Tube Fitting | 136.7 | |
| U-08T | 1/2” UNILOK Tube Fitting | 136.7 | ||
| C-08M- | 1/2” Male UCR Swivel | 142 | ||
| C-08F- | 1/2” Female UCR Swivel | 142 | ||
| WB-06T- | 3/8” Tube Butt Weld | 94 | ||
| WB-08T- | 1/2” Tube Butt Weld | 94 | ||
How To Order
| RCE02 | C | - | 08F | - | 24 | 2 | 3 | - | 4 | ||||
| Regulator
Type | Connection Type | Connection Size | Inlet / Outlet Pressure | Gauge Port Option | Outlet Gauge | Inlet Gauge | Body Material | Surface Finish | Trim Material | Seat Material |
| Regulator Type | Gauge Port Option | Inlet Gauge | |||||
| RCE02 | UHP Regulator | 0 | None (Fig. A) | None | No Gauge | ||
| 1 | 1/4“ Internal UCR (Fig. B) | A | 0~600 psig | ||||
| Connection Type | 2 | 1/4“ Internal UCR (Fig. C) | B | 0~1000 psig | |||
| C-*M | Male UCR Swivel | 3 | 1/4“ Internal UCR (Fig. D) | C | 0~2500 psig | ||
| C-*F | Female UCR Swivel | 4 | 1/4“ Male Swivel (Fig. B) | D | 0~3500 psig | ||
| WB-*T | Tube Butt Weld | 5 | 1/4“ Male Swivel (Fig. C) | E | 0~4000 psig | ||
| U-*T | UNILOK Tube Fitting | 6 | 1/4“ Male Swivel (Fig. D) | ||||
| 7 | 1/4“ Female Swivel (Fig. B) | Body Material | |||||
| Connection Size | 8 | 1/4“ Female Swivel (Fig. C) | 4 | 316L Stainless Steel | |||
| 06 | 3/8 inch | 9 | 1/4“ Female Swivel (Fig. D) | ||||
| 08 | 1/2 inch | Internal Surface Finish | |||||
| Outlet Gauge | None | EP – Electro Polished | |||||
| Maximum Inlet Pressure | None | No Gauge | BA | BA | |||
| 1 | 3500 psig / 241bar | 0 | 0~30 psig | ||||
| 2 | 1000 psig / 68.9 bar | 1 | 0~60 psig | Trim Material | |||
| 3 | 600 psig / 41.4 bar | 2 | 0~100 psig | None | 316 SS | ||
| 3 | 0~160 psig | H | Hastelloy® | ||||
| Outlet Pressure Range | 4 | 0~200 psig | |||||
| 0 | 1~30 psig / 0.1~2.1 bar | Seat Material | |||||
| 1 | 1~60 psig / 0.1~4.1 bar | None | PCTFE | ||||
| 2 | 1~100 psig / 0.1~6.9 bar | V | PI | ||||
| 3 | 1~130 psig / 0.1~8.9 bar | ||||||
| 4 | 1~150 psig / 0.1~10.3 bar | ||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 600, 1000, 3500
psig (41.4, 69.0, 241 bar) | Body | 316L Stainless Steel | ||
| Diaphragm | 316L Stainless Steel or Hastelloy® | ||||
| Outlet Pressure Range | 30,
60, 100, 130, 150 psig (2.1, 4.1, 6.9, 8.9, 10.3 bar) | Seat | PCTFE (Optional PI) | ||
| Spring | 316 Stainless Steel or Inconel® | ||||
| Design Proof Pressure | 150% of maximum rated | Poppet, Retainer | 316L Stainless Steel or Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -26~80℃ (-15℉~176℉) | Designator | Surface Finish(µm) | ||
| PI Seat | -26~177℃ (-15℉~350℉) | Average | Maximum | ||
| BA | ＜ 0.4 | ＜ 1.6 | |||
| Flow Capacity | EP | ＜ 0.125 | ＜ 0.4 | ||
| Flow Capacity | 0.5 Cv | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec | ||||
Features
· RCE02 series provides excellent stability of set pressure with accuracy, sensitivity.
· Metal to metal diaphragm seals provide enhanced leak integrity
· Optimum performance and cleanliness at a great value
· Low internal volume
· Adjustable stop to limit outlet pressure
· All performed in class 100 and class 10 clean rooms
<Flow chart>
