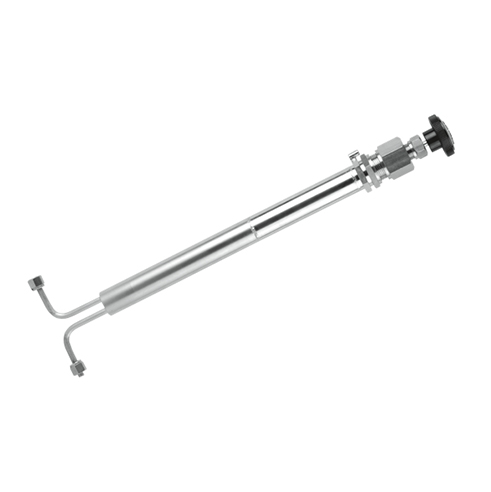

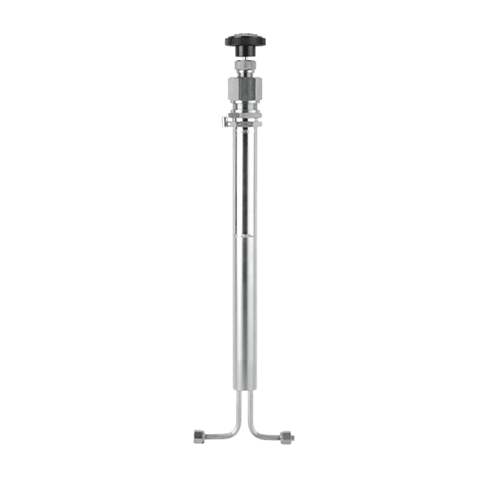

- Instruments | Valve | Pressure Reducing Valve
PDF 다운로드
- Dimensions
- Specification
- Features
Dimensions
| Part No. | End Connections | Dimensions (mm) | ||||||
| H | h1 | h2 | I1 | I2 | ||||
| VPR | 04T- | 1/4" UNILOK | 461 | 359 | 102 | 51.6 | 48 | |
| 04P- | 1/4" Tube SW | |||||||
| 04F- | 1/4" 37°Flare | |||||||
| 04E- | 1/4" Union Elbow | |||||||
Specification
Max Operating Temperature : 50℃(122℉)~149℃(300℉)
Max Operating Pressure : 5000psi at 149℃(300℉)
Sample Flow Range : 150ml/min~4000ml/min
Pressure Reducing Range : 5~5000 psi
Installation : Panel Mounting
Connection : Tube, Socket Weld, 37˚Flare & Elbow
Application
In modern power generation plants & general industrial boilers, chemical analysis of water and steam samples requires precise control of flow and pressure. High pressure reduction occurs unique sampling problems. UNILOK VPR series is a valve specially designed to solve these kinds of problems.
End Connection Type
Important Notification
Proper installation, materials compatibility, operation and maintenance of these valves are the responsibility of the user.
The total system design must be taken into consideration to ensure optimal performance and safety.
Features
No Plugging
Easy Cleaning & Maintenance
Simple Adjustment under Various Pressure Conditions
No Corrosion
