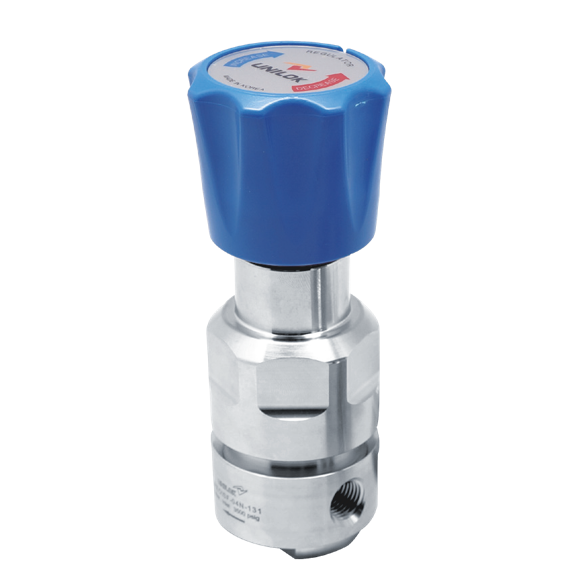

RE01 Series
RE01 Series
카테고리
- Instruments | Regulator | RE01
- Dimensions
- How To order
- Specification
Dimensions
| Part No. | End Connections | Dimensions(mm) | |||
| Inlet | Outlet | L ± 1 | |||
| RE01 | F-04N | 1/4” Female NPT | 49 | ||
| U-04T | 1/4” UNILOK Tube Fitting | 109.7 | |||
How To order
| RE01 | S | F | - | 04N | 12 | 0 | - | - | - | |||
| Regulator Type |
Body Material |
Connection Type |
Connection Size |
Inlet /Outlet Pressure |
Gauge Port Option |
Trim Material |
Seat Material |
Filter Option |
| Regulator Type | Maximum Inlet Pressure | Trim Material | ||||||||||
| RE01 | RE01 Series | 1 | 3500 psig / 241bar | None | 316L SS | |||||||
| 2 | 500 psig / 34.5 bar | H | Hastelloy® | |||||||||
| Body Material | ||||||||||||
| S | 316L SS | Outlet Pressure Range | Seat Material | |||||||||
| B | BRASS | 0 | 1 ~ 25 psig / 1 ~ 1.7 bar | None | PCTFE | |||||||
| 1 | 1 ~ 50 psig / 1 ~ 3.5 bar | V | PI | |||||||||
| Connection Type | 2 | 1 ~ 100 psig / 1 ~ 6.9 bar | ||||||||||
| F-*N | Female NPT | 3 | 1 ~ 250 psig / 1 ~ 17.3 bar | Filter Option | ||||||||
| U-*T | UNILOK Tube Fitting | 4 | 1 ~ 500 psig / 1 ~ 34.5 bar | None | No Filter | |||||||
| F | Inlet Mesh Filter | |||||||||||
| Connection Size | Gauge Port Option | |||||||||||
| 04 | 1/4" | 0 | None (Fig. A) | |||||||||
| 1 | 1/4 “ Female NPT (Fig. B) | |||||||||||
| 2 | 1/4 “ Female NPT (Fig. C) | |||||||||||
| 3 | 1/4 “Female NPT (Fig. D) | |||||||||||
Specification
| Pressure Ratings | ||||
| Per criteria of ANSI / ASME B31.3 | Helium Leak Test | |||
| Max. Inlet Pressure | 3500 or 500 psig ( 241 or 34.5 bar) | Inboard Leak Rate | 2x10-8 atm cc/sec | |
| Outlet Pressure Range | 25,
50, 100, 250 and 500 psig (1.7, 3.5, 6.9, 17.3 and 34.5 bar) | Media Contact Materials | ||
| Body | 316L Stainless Steel | |||
| Design Proof Pressure | 150% of maximum rated | Diaphragm | Hastelloy® | |
| Seat | 316L Stainless Steel or Incornel®PCTFE (Optional PI) | |||
| Operating Temperature | Spring | 316L Stainless Steel or Incornel® | ||
| PCTFE Seat | -40 ~ 60°C (-40°F ~140°F) | Poppet, Retainer | 316L Stainless Steel or Hastelloy® | |
| PI Seat | -40 ~ 177°C (-40°F ~350°F) | |||
| Flow Capacity | ||||
| 3500 psig / 241 bar | 0.06 Cv | |||
| 500 psig / 41.4 bar | 0.2 Cv |
Flow Chart
