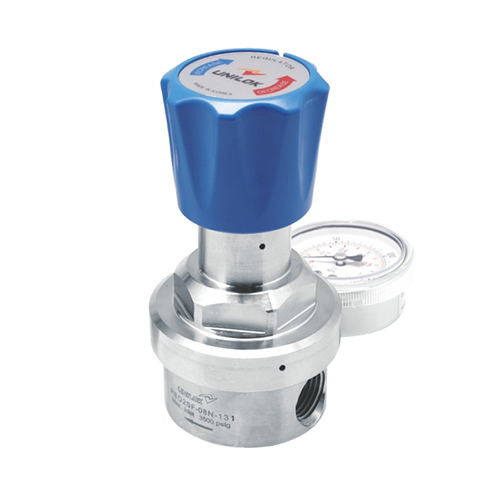

- Dimensions
- How To order
- Specification
- Features
Dimensions
| Part No. | End Connections | Dimensions(mm) | |||
| Inlet | Outlet | L ± 1 | |||
| RE02 | F-08N | 1/2” Female NPT | 60.0 | ||
| U-06T | 3/8” UNILOK Tube Fitting | 136.7 | |||
| U-08T | 1/2” UNILOK Tube Fitting | 136.7 | |||
How To order
| RE02 | S | F | - | 08N | 12 | 0 | - | - | ||
| Regulator Type | Body Material | Connection Type | Connection Size | Inlet /Outlet Pressure | Gauge Port Option | Trim Material | Seat Material |
| Regulator Type | Connection Size | Gauge Port Option | |||||||||||
| RE02 | RE02 Series | 6 | 3/8" | 0 | None (Fig. A) | ||||||||
| 8 | 1/2" | 1 | 1/4 “ Female NPT (Fig. B) | ||||||||||
| Body Material | 2 | 1/4 “ Female NPT (Fig. C) | |||||||||||
| S | 316L SS | Maximum Inlet Pressure | 3 | 1/4 “Female NPT (Fig. D) | |||||||||
| B | BRASS | 1 | 3500 psig / 241bar | ||||||||||
| 2 | 500 psig / 34.5 bar | Trim Material | |||||||||||
| Connection Type | None | 316L SS | |||||||||||
| F-*N | Female NPT | Outlet Pressure Range | H | Hastelloy® | |||||||||
| U-*T | UNILOK Tube Fitting | 0 | 1 ~ 25 psig / 1 ~ 1.7 bar | ||||||||||
| 1 | 1 ~ 50 psig / 1 ~ 3.5 bar | Seat Material | |||||||||||
| 2 | 1 ~ 100 psig / 1 ~ 6.9 bar | None | PCTFE | ||||||||||
| 3 | 1 ~ 250 psig / 1 ~ 17.3 bar | V | PI | ||||||||||
| PI seat for 3500 psig only | |||||||||||||
Specification
| Pressure Ratings | ||||
| Per criteria of ANSI / ASME B31.3 | Helium Leak Test | |||
| Max. Inlet Pressure | 3500 or 500 psig ( 241 or 34.5 bar) | Inboard Leak Rate | 2x10-8 atm cc/sec | |
| Outlet Pressure Range | 25,
50, 100 and 250 psig (1.7, 3.5, 6.9 and 17.3 bar) | Media Contact Materials | ||
| Body | 316L Stainless Steel | |||
| Design Proof Pressure | 150% of maximum rated | Diaphragm | Hastelloy® | |
| Seat | PCTFE (Optional PI) | |||
| Operating Temperature | Spring | 316 Stainless Steel or Inconel® | ||
| PCTFE Seat | -40 ~ 60°C (-40°F ~140°F) | Poppet, Retainer | 316L Stainless Steel or Hastelloy® | |
| PI Seat | -40 ~ 177°C (-40°F ~350°F) | |||
| Flow Capacity | ||||
| Flow Capacity | 0.5 Cv 0.45 Cv (3500 psig, PCTFE Seat only) |
Flow Chart
Features
- The RE02 series provides excellent stability of set pressure with accuracy and sensitivity.
- Metal-to-metal diaphragm seals provide enhanced leak integrity.
- Optimum performance and cleanliness at a great value.
- Low internal volume.
- Adjustable stop to limit outlet pressure.
