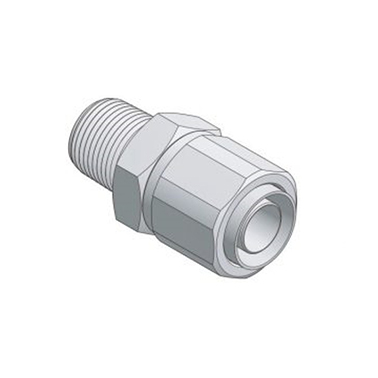

UHFMC

Hose Fittings

카테고리

Instruments | Fittings | Hose Fittings

PDF 다운로드

Dimensions
How To Order
Features

Dimensions

Part No.	P ISO7/1	Dimensions (mm)
		E Min.	H		h		L	F	I	T
		E Min.	inch	mm	inch	mm	L	F	I	T
UHFMC-H0611-02R	1/8	4.8	15/16	23.81	13/16	20.63	39.1	22.0	28.7	6.0
UHFMC-H0611-04R	1/4	7.1	15/16	23.81	13/16	20.63	43.7	22.0	33.3	6.0
UHFMC-H0611-06R	3/8	9.7	15/16	23.81	13/16	20.63	43.7	22.0	33.3	6.0
UHFMC-H0611-08R	1/2	10.4	15/16	23.81	7/8	22.22	49.3	22.0	38.9	6.0
UHFMC-H0611-12R	3/4	10.4	15/16	23.81	1-1/16	26.98	50.8	22.0	40.4	6.0
UHFMC-H0611-16R	1	10.4	15/16	23.81	1-3/8	34.92	57.4	22.0	47.0	6.0
UHFMC-H0813-02R	1/8	4.8	15/16	23.81	13/16	20.63	39.1	22.0	28.7	8.0
UHFMC-H0813-04R	1/4	7.1	15/16	23.81	13/16	20.63	43.7	22.0	33.3	8.0
UHFMC-H0813-06R	3/8	9.7	15/16	23.81	13/16	20.63	43.7	22.0	33.3	8.0
UHFMC-H0813-08R	1/2	10.4	15/16	23.81	7/8	22.22	49.3	22.0	38.9	8.0
UHFMC-H0813-12R	3/4	10.4	15/16	23.81	1-1/16	26.98	50.8	22.0	40.4	8.0
UHFMC-H0813-16R	1	10.4	15/16	23.81	1-3/8	34.92	57.4	22.0	47.0	8.0
UHFMC-H0915-04R	1/4	7.1	15/16	23.81	15/16	23.81	44.7	22.5	34.0	9.0
UHFMC-H0915-06R	3/8	9.7	15/16	23.81	15/16	23.81	44.7	22.5	34.0	9.0
UHFMC-H0915-08R	1/2	11.9	15/16	23.81	15/16	23.81	49.6	22.5	38.9	9.0
UHFMC-H0915-12R	3/4	12.7	15/16	23.81	1-1/16	26.98	51.1	22.5	40.4	9.0
UHFMC-H1016-04R	1/4	7.1	15/16	23.81	15/16	23.81	44.7	22.5	34.0	10.0
UHFMC-H1016-06R	3/8	9.7	15/16	23.81	15/16	23.81	44.7	22.5	34.0	10.0
UHFMC-H1016-08R	1/2	11.9	15/16	23.81	15/16	23.81	49.6	22.5	38.9	10.0
UHFMC-H1016-12R	3/4	12.7	15/16	23.81	1-1/16	26.98	51.1	22.5	40.4	10.0
UHFMC-H1218-06R	3/8	10.4	1-1/16	26.98	1-1/16	26.98	47.6	24.0	35.4	12.0
UHFMC-H1218-08R	1/2	11.9	1-1/16	26.98	1-1/16	26.98	52.6	24.0	40.4	12.0
UHFMC-H1218-12R	3/4	15.7	1-1/16	26.98	1-1/16	26.98	52.6	24.0	40.4	12.0
UHFMC-H1218-16R	1	15.7	1-1/16	26.98	1-3/8	34.92	59.2	24.0	47.0	12.0
UHFMC-H1522-12R	3/4	15.7	1-1/4	31.75	1-3/16	30.16	53.6	25.0	40.4	15.0
UHFMC-H1522-16R	1	18.3	1-1/4	31.75	1-3/8	34.92	60.2	25.0	47.0	15.0
UHFMC-H1926-08R	1/2	11.9	1-1/2	38.10	1-3/8	34.92	58.2	27.0	45.2	19.0
UHFMC-H1926-12R	3/4	15.7	1-1/2	38.10	1-3/8	34.92	58.2	27.0	45.2	19.0
UHFMC-H1926-16R	1	22.4	1-1/2	38.10	1-3/8	34.92	63.0	27.0	50.0	19.0
UHFMC-H2533-16R	1	22.4	1-1/4	44.45	1-3/4	44.45	75.9	37.5	55.1	25.0
UHFMC-H2533-20R	1-1/4	27.7	1-1/4	44.45	1-3/4	44.45	75.9	37.5	55.1	25.0
NPT threads are available for all metric UHFMC. To order, add “N” as a suffix instead of “R”.

How To Order

UNIOK UHFM series Hose Fitting are ordered by part number as shown below.
Example: The following part number, UHFMC-H0915-04R-SS is designated for UHFM series Hose Fitting, Body Type UMC,
Hose Size(I.D*O.D) 09*15, Body thread 1/4”PT, 316SS.

U	HFMC	-	H0915	-	04	R	-	SS
UNILOK	Fitting Type		Hose Size		Pipe Size	Thread Type		Body Materials
UNILOK	Fitting Type		Hose Size		Pipe Size	Thread Type		Body Materials

Fitting Type
Male Connector	HFMC
Male Elbow	HFME

Hose Size
Hose Size (I.D.*O.D.)		mm	8*13.5	9*15	10*16	12*18	15*22	19*26	25*33
Designator			H0813	H0915	H1016	H1218	H1522	H1926	H2533

Pipe Size Designation (NPT or ISO7/1-PT)
Pipe Size	1/8	1/4	3/8	1/2	3/4	1
Designator	02	04	06	08	12	16

Thread Type Designation							Body Materials
Designator	Thread Type						Designator		SS
N	NPT		National Standard Pipe Thread				Materials		316SS
R	ISO 7/1		Taper Pipe Thread

Features

- UHFM has a simple structure and assembly.

- To prevent hose separation.

- The body can be replaced with UMC (Male Connector) or UME (Male Elbow).

- It can be disassembled and reassembled.
