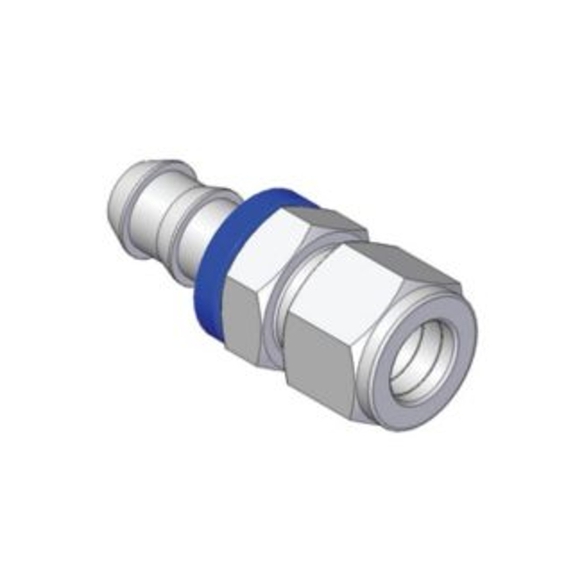

UHPTFA
Push-On Hose Tube Fittings
카테고리
- Instruments | Fittings | Hose Connectors
PDF 다운로드
- Dimensions
- How To Order
Dimensions
| Connects Hose to Tube | ||||||
| Part No. | Hose I.D. | Tube O.D. T | Dimensions (mm) | |||
| H | h | L | L1 | |||
| UHPTFA-04H04 | 1/4 | 1/4 | 9/16 | 9/16 | 50.0 | 30.7 |
| UHPTFA-06H06 | 3/8 | 3/8 | 11/16 | 11/16 | 53.6 | 31.5 |
| UHPTFA-08H08 | 1/2 | 1/2 | 7/8 | 7/8 | 62.7 | 36.1 |
How To Order
Standard materials is 316SS. To order, add - SS to Cleaning the end of part number.
Example: UHPTFA-08H08T-SS
Cleaning
UNILOK fittings are free from machine oils, loose particles and grease throughout the close cleaning process.
