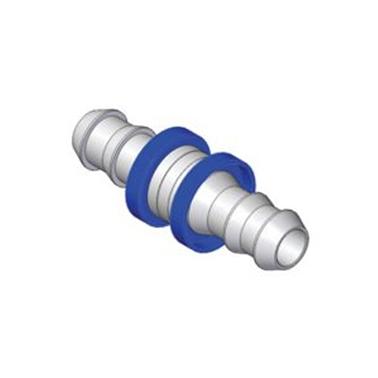

UHPSU
Push-On Hose Straight Union
카테고리
- Instruments | Fittings | Hose Connectors
PDF 다운로드
- Dimensions
- How To Order
Dimensions
| Connects Hose | ||||
| Part No. | Hose I.D. | Tube O.D. T | Dimensions (mm) | |
| L1 | L2 | |||
| UHPSU-04H04H | 1/4 | 1/4 | 52.6 | 14.0 |
| UHPSU-06H06H | 3/8 | 3/8 | 57.2 | 13.0 |
| UHPSU-08H08H | 1/2 | 1/2 | 69.4 | 13.0 |
| UHPSU-12H12H | 3/4 | 3/4 | 100.8 | 13.0 |
How To Order
Standard materials is 316SS. To order, add - SS to Cleaning the end of part number.
Example: UHPTFA-08H08T-SS
Cleaning
UNILOK fittings are free from machine oils, loose particles and grease throughout the close cleaning process.
