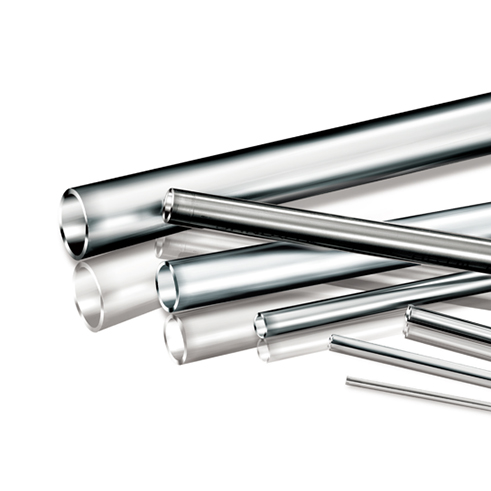

Seamless & Welded Tubing
Seamless & Welded Tubing

카테고리

  • Instruments | Seamless & Welded Tubing | Other

PDF 다운로드

Catalog 다운로드
  • Dimensions
  • How To order
  • Features
  • Materials

Dimensions

Part No.Tube O.DNominal Wall
Thickness (in)
Length
(in)(mm)
ZTSSG 02T028L06-1/80.0286000
04T035L06-1/40.035
04T049L06-0.049
04T065L06-0.065
06T035L06-3/80.035
06T049L06-0.049
06T065L06-0.065
08T035L06-1/20.035
08T049L06-0.049
08T065L06-0.065
10T065L06-5/80.065
12T065L06-3/40.065
16T083L06-10.083
20T095L06-1-1/40.095
20T120L06-0.12
24T120L06-1-1/20.12
24T134L06-0.134
32T134L06-20.134
32T188L06-0.188

How To order

ZTSSM-04T035L06-SS-EP
TubingMethod of
manufacture
ShapeSurface
Color
Tube
O.D.
Nominal Wall
Thickness
LengthMaterialSurface
Finish Level
Method of manufactureTube O.D. Designation
SSeamlessTube
O.D.
inch1/83/161/45/163/81/2~1~
WWeldedmm3.174.766.357.939.5212.7~25.4~
HWSemi-SeamlessDesignator020304050608~16~
ShapeNominal Well Thickness(in)Materials
SStraightT0280.028S4304 SS
CCoilT0350.035S4L304L SS
T0490.049SS316 SS
Surface Color~~SL316L SS
NMatt
GGlossLengthSurface Finish Level
L022mAPAnnealing & Pickling
L033mBABright Annealing
L044mEPElectro Polishing
L066m

Features

- Quality mother pipes as raw materials.

- Excellent finished inner and outer surface by precision cold drawn.

- Strict size tolerance control in accordance with ASTM standards.

- Fully bright annealed for outstanding corrosion resistance for both seamless and welded tubing.

- Exact hardness for proper tubing.

- ECT (Eddy Current Test) for every piece of tubing

- Guaranteed application for all UNILOK tube fittings and valves with UNILOK ports.

Materials

GradeASTMUNSASME
304A213/A269 TP304S30400/S30403SA213
304LA213/A269 TP304L
316A213/A269 TP316S31600/S31603SA213
316LA213/A269 TP316L
Alloy 400(Monel), Alloy 625(Inconel 625)
Alloy 825, Alloy C276 (Hastelloy C-276)
Duplex, Super Duplex
