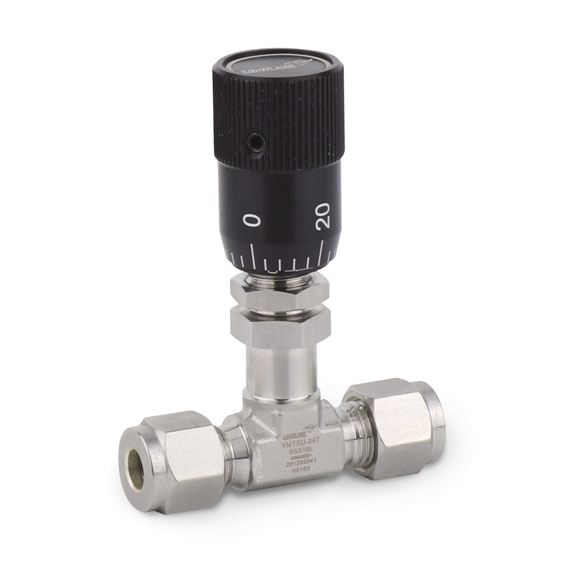

VMTS series

Stem Angle 1°, Orifice 0.81mm

카테고리

Instruments | Valve | Metering Valve

PDF 다운로드

Dimensions
How To Order
Handle Options
Features

Dimensions

Part No.		End Connections		Orifice	CV (Max)	Dimensions (mm)				Panel Hole Drill Size
		Inlet	Outlet			L	C	h	H (open)

VMTS	U-02T-	1/8" UNILOK		0.8	0.005	48.3	6.8	23.4	69.1	11.5
	U-04T-	1/4" UNILOK				51.2
	U-M03T-	3mm UNILOK				48.3
	U-M06T-	6mm UNILOK				51.3
	C-04M	1/4" Male UCR				52.4

How To Order

UNILOK VMT series metering valves are ordered by part number as shown below.

Example: The following part number, VMTSU-04T-SS-V is designated for VMTS series metering valve with both 1/4"UNILOK tube fittings, 316SS, vernier handle.

V	MTS	U	-	04T	-	SS	-	V	-
UNILOK Valve	Valve Type	Connection type		Connection Size		Body Materials		Handle Type		Seal Materials

Valve Type

Connection Size

Handle Type

MTS

Stem Taper Angel - 1°

Fractional(Inch) Tube O.D. Designation

Vernier Handle

MTM

Stem Taper Angel - 3°

Tube
O.D.

inch

1/8

1/4

Round Aluminum Handle

MTL

Stem Taper Angel - 5°

3.17

6.35

Slotted Handle

Designator

02T

04T

See the details in page 172.

Connection Type

UNILOK Tube Fitting

Metric Tube O.D. Designation

Seal Materials

Female NPT or ISO7/1(PT)

Tube O.D.

None

FKM

Male NPT or ISO7/1(PT)

Designator

M03T

M06T

Buna-N

UCR-Metal Face Seal

Pipe Size Designation (NPT or ISO7/1-PT)

Pipe Size

1/8

1/4

Designator

02N/R

04N/R

UCR Size Designation

Tube Size

1/4

Designator

04M

Handle Options

Different types of aluminum handles are available depending on valve series.

Vavle Series	Handle Types			Color	Designator
Vavle Series	Vernier	Slotted	Round	Gold	G
VMTS	O	O	X	Silver	S
VMTM	O	O	X	Standard color for all handles is black. Other colored are available upon request as option only with vernier and slotted handles. To order, add color designator to the end of handle option. Example : -VG shown as gold vernier handle
VMTL	O	X	O
