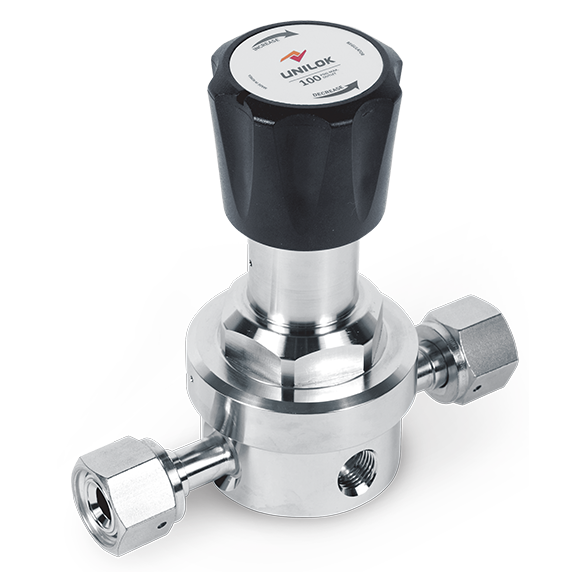

RC02 series
Non-Tied Diaphragm, High Flow
카테고리
- UHP | Regulator | RC02 series
PDF 다운로드
- Dimensions
- How To Order
- Specification
- Features
Dimensions
| Part No. | End Connection | Dimensions(mm) | |||
| Inlet | Outlet | L ± 1 | |||
| RC02 | U-06T- | 3/8” UNILOK Tube Fitting | 136.7 | ||
| U-08T- | 1/2” UNILOK Tube Fitting | 136.7 | |||
| C-08M- | 1/2” Male UCR Swivel | 142 | |||
| C-08F- | 1/2” Female UCR Swivel | 142 | |||
| WB-06T- | 3/8” Tube Butt Weld | 94 | |||
| WB-08T- | 1/2” Tube Butt Weld | 94 | |||
How To Order
| RC02 | C | - | 08F | - | 32 | 2 | 2 | - | 4 | ||||
| Regulator Type | Connection Type | Connection Size | Inlet / Outlet Pressure | Gauge Port Option | Outlet Gauge | Inlet Gauge | Body Material | Surface Finish | Trim Material | Seat Material | |||
| Regulator Type | Gauge Port Option | Inlet Gauge | |||||||||||
| RC02 | RC02 Series | 0 | None (Fig. A) | None | No Gauge | ||||||||
| 1 | 1/4“ Internal UCR (Fig. B) | A | 0~600 psig | ||||||||||
| Connection Type | 2 | 1/4“ Internal UCR (Fig. C) | B | 0~1000 psig | |||||||||
| C-*M | Male UCR Swivel | 3 | 1/4“ Internal UCR (Fig. D) | C | 0~2500 psig | ||||||||
| C-*F | Female UCR Swivel | 4 | 1/4“ Male Swivel (Fig. B) | D | 0~3500 psig | ||||||||
| WB-*T | Tube Butt Weld | 5 | 1/4“ Male Swivel (Fig. C) | E | 0~4000 psig | ||||||||
| U-*T | UNILOK Tube Fitting | 6 | 1/4“ Male Swivel (Fig. D) | ||||||||||
| 7 | 1/4“ Female Swivel (Fig. B) | Body Material | |||||||||||
| Connection Size | 8 | 1/4“ Female Swivel (Fig. C) | 2 | 316L VAR Stainless Steel | |||||||||
| 06 | 3/8 inch | 9 | 1/4“ Female Swivel (Fig. D) | 4 | 316L Stainless Steel | ||||||||
| 08 | 1/2 inch | ||||||||||||
| Outlet Gauge | Internal Surface Finish | ||||||||||||
| Maximum Inlet Pressure | None | No Gauge | None | EP – Electro Polished | |||||||||
| 1 | 3500 psig / 241bar | 0 | 0~30 psig | BA | BA | ||||||||
| 2 | 1000 psig / 68.9 bar | 1 | 0~60 psig | ||||||||||
| 3 | 600 psig / 41.4 bar | 2 | 0~100 psig | Trim Material | |||||||||
| 3 | 0~160 psig | None | 316 SS | ||||||||||
| Outlet Pressure Range | 4 | 0~200 psig | H | Hastelloy® | |||||||||
| 0 | 1~30 psig / 0.1~2.1 bar | ||||||||||||
| 1 | 1~60 psig / 0.1~4.1 bar | Seat Material | |||||||||||
| 2 | 1~100 psig / 0.1~6.9 bar | None | PCTFE | ||||||||||
| 3 | 1~130 psig / 0.1~8.9 bar | V | PI | ||||||||||
| 4 | 1~150 psig / 0.1~10.3 bar | ||||||||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 600, 1000, 3500 psig (41.4, 69.0, 241 bar) | Body | 316L Stainless Steel | ||
| Diaphragm | Hastelloy® | ||||
| Outlet Pressure Range | 30, 60, 100, 130, 150 psig (2.1, 4.1, 6.9, 8.9, 10.3 bar) | Seat | PCTFE (Optional PI) | ||
| Spring | 316L Stainless Steel or Inconel® | ||||
| Design Proof Pressure | 150% of maximum rated | Poppet, Retainer | 316L Stainless Steel or Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -40~60℃ (-40℉~140℉) | Designator | Surface Finish(µm) | ||
| PI Seat | -40~177℃ (-40℉~350℉) | Average | Maximum | ||
| BA | ＜ 0.4 | ＜ 1.6 | |||
| Flow Capacity | EP | ＜ 0.125 | ＜ 0.4 | ||
| Flow Capacity | 0.5 Cv 0.45 Cv (3500 psig, PCTFE Seat only) | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec | ||||
Features
· The RC02 series provides excellent stability of set pressure with accuracy and sensitivity.
· Metal to metal diaphragm seals provide enhanced leak integrity
· Optimum performance and cleanliness at a great value
· Low internal volume
· Adjustable stop to limit outlet pressure
· All performed in Class 100 and Class 10 clean rooms.
