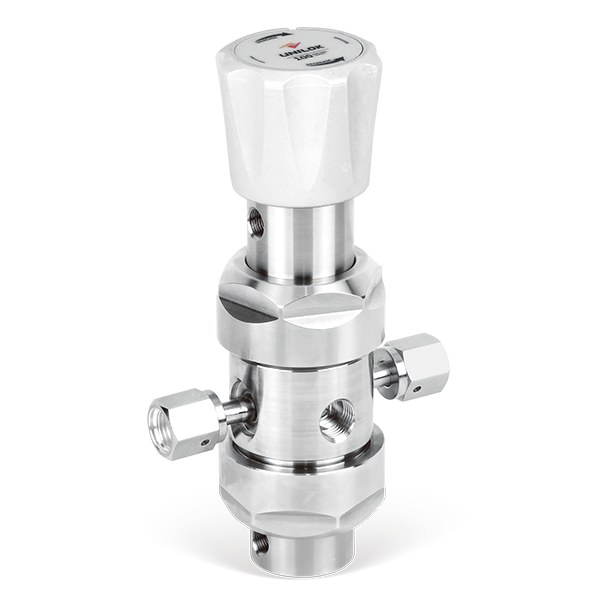

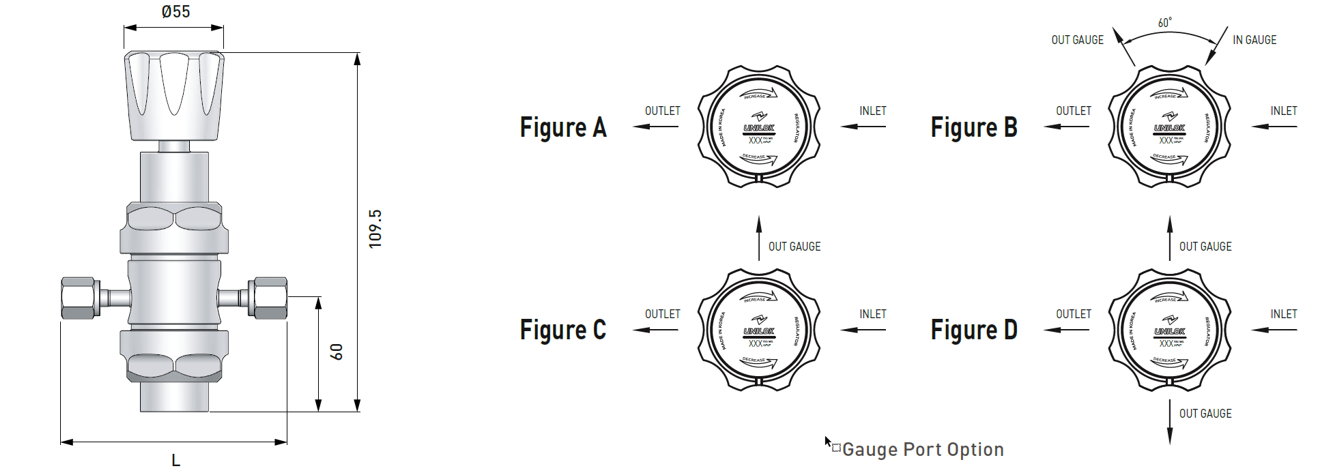

Dimensions
| Part Number | End Connection | Dimensions(mm) | ||
| Inlet | Outlet | L ± 1 | ||
| RCTW1 | C-04M- | 1/4" Male UCR Swivel | 94 | |
| C-04F- | 1/4" Female UCR Swivel | 94 | ||
| C-04MF- | 1/4" Male UCR Swivel | 1/4" Female UCR Swivel | 94 | |
| C-04FM- | 1/4” Female UCR Swivel | 1/4” Male UCR Swivel | 94 | |
| WB-04T- | 1/4” Tube Butt Weld | 76.2 | ||
| Dimensions are for reference only and are subject to change without prior notice. | ||||
How To Order
| RCTW1 | C | ▬▬ | 04F | ▬▬ | 22 | 2 | 2 | ▬▬ | 2 | ▬▬ | |||||
| Regulator Type |
Connection Type |
Connection Size |
Inlet / Outlet Pressure |
Gauge Option |
Outlet Gauge |
Inlet Gauge |
Body Material |
Surface Finish |
Trim Material |
Seat Material |
Options |
| Regulator Type | Gauge Port Option | Inlet Gauge | |||||
| RCTW1 | RCTW1 Series | 0 | None (Fig. A) | None | No Gauge | ||
| 1 | 1/4“ Internal UCR (Fig. B) | A | 0~600 psig | ||||
| Connection Type | 2 | 1/4“ Internal UCR (Fig. C) | B | 0~1000 psig | |||
| C-*M | Male UCR Swivel | 3 | 1/4“ Internal UCR (Fig. D) | C | 0~2500 psig | ||
| C-*F | Female UCR Swivel | 4 | 1/4“ Male Swivel (Fig. B) | D | 0~3500 psig | ||
| WB-*T | Tube Butt Weld | 5 | 1/4“ Male Swivel (Fig. C) | E | 0~4000 psig | ||
| 6 | 1/4“ Male Swivel (Fig. D) | ||||||
| Connection Size | 7 | 1/4“ Female Swivel (Fig. B) | Body Material | ||||
| 04 | 1/4 inch | 8 | 1/4“ Female Swivel (Fig. C) | 2 | 316L VAR Stainless Steel | ||
| 9 | 1/4“ Female Swivel (Fig. D) | 4 | 316L Stainless Steel | ||||
| Maximum Inlet Pressure | |||||||
| 1 | 3500 psig (0.05 Cv) | Outlet Gauge | Internal Surface Finish | ||||
| 2 | 3500 psig (0.07 Cv) | None | No Gauge | None | EP – Electro Polished | ||
| 0 | 0~30 psig | BA | BA | ||||
| Outlet Pressure Range | 1 | 0~60 psig | |||||
| 0 | 1~30 psig / 0.1~2.1 bar | 2 | 0~100 psig | Trim Material | |||
| 1 | 1~60 psig / 0.1~4.1 bar | 3 | 0~160 psig | None | 316 SS | ||
| 2 | 1~100 psig / 0.1~6.9 bar | 4 | 0~200 psig | H | Hastelloy® | ||
| 3 | 1~150 psig / 0.1~10.3 bar | ||||||
| 4 | 1~200 psig / 0.1~13.8 bar | Seat Material | |||||
| None | PCTFE | ||||||
| V | PI | ||||||
| Options | |||||||
| None | No Option | ||||||
| N | 1st Tied, 2nd Free Poppet | ||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 3500 psig(241 bar) | Diaphragm | Hastelloy® | ||
| Outlet Pressure Range | 30,
60, 100 150 and 200 psig (2.1, 4.1, 6.9 and 10.3 bar) |

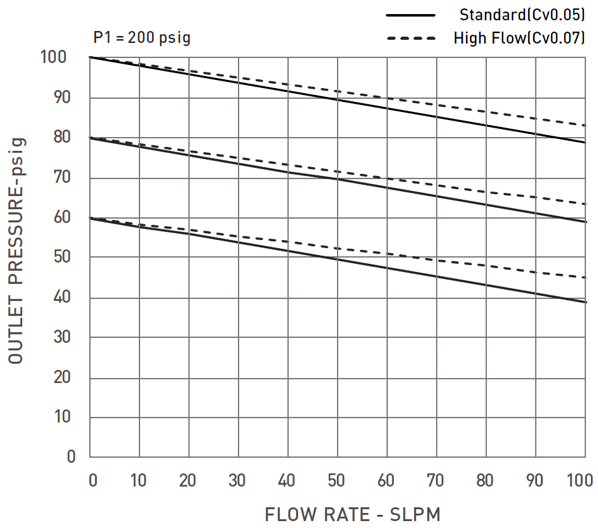

Seat | PCTFE (Optional PI) | ||
| Spring | 316 Stainless Steel or Inconel® | ||||
| Design Proof Pressure | 150% of maximum rated | Poppet, Retainer | 316L Stainless Steel or Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -40~71°C(-40°F~160°F) | Description | Surface Finish(µm) | ||
| Pl Seat | -40~177°C (-40°F~350°F) | Average | Maximum | ||
| BA | <0.4 | <1.6 | |||
| Flow Capacity | EP | <0.125 | <0.4 | ||
| Flow Capacity | 0.05 Cv (Optional 0.07 Cv) | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec He | ||||
Features
|
