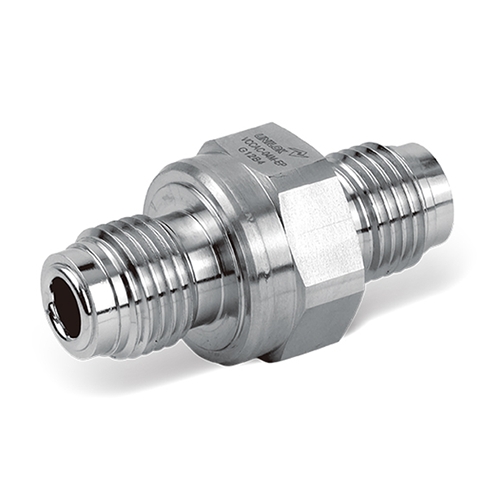

VCCA series
Fully Welded Check Valve
카테고리
- UHP | Valves | Check Valves | VCCA
PDF 다운로드
- Dimensions
- How To Order
- Specification
- Features
Dimensions
| Part No. | End Connection | Dimensions (mm) | |||
| Inlet | Outlet | A | B | ||
| VCCA | U-04T- | 1/4" UNILOK | 49.8 | 22.2 | |
| C-04M- | 1/4" Male UCR | 45.7 | 22.2 | ||
| C-08M- | 1/2" Male UCR | 52.3 | 26.9 | ||
| C-04F- | 1/4" Female UCR | 61.7 | 22.2 | ||
| C-08F- | 1/2" Female UCR | 61.7 | 26.9 | ||
| WB-04T- | 1/4" Tube Butt Weld | 31.5 | 22.2 | ||
| WB-06T- | 3/8" Tube Butt Weld | 31.5 | 22.2 | ||
| WB-08T- | 1/2" Tube Butt Weld | 31.5 | 26.9 | ||
How To Order
UNILOK VCCA series valves are ordered by part number as shown below.
Example : The following part number,VCCA-04M LV-EP is designated for Clean Check Valve, both 1/4" Male UCR, 316L VAR, EP
| VC | CA | C | - | 04M | - | LV | - | EP | - | |
| UNILOK Clean Valves |
Valve Type |
Connection Type |
Connection Size |
Material | Surface Finish Level |
Seal Material | ||||
| Valve Type | Connection Size | Materials | ||||||||||||
| CA | VCCA Check Valve | Fractional(Inch) Tube O.D. Designation | LV | 316L VAR | ||||||||||
| Tube O.D. | inch | 1/4 | 3/8 | 1/2 | LF | 316L SEMI F20 | ||||||||
| Connection Type | mm | 6.35 | 9.52 | 12.70 | SL | 316LSS | ||||||||
| U | UNILOK Tube Fitting | Designator | 04T | 06T | 08T | |||||||||
| C-*M | Male UCR | Surface Finish Level | ||||||||||||
| C-*F | Female UCR | UCR Size Designator | BA | BA - Bright Annealing | ||||||||||
| WB- | Butt Weld -Tube | UCR Size | 1/4 | 1/2 | EP | EP - Electro Polished | ||||||||
| UCR - Metal Face Seal | Designator | 04 | 08 | |||||||||||
| Seal Material | ||||||||||||||
| None | FKM | |||||||||||||
| K | FFKM | |||||||||||||
| E | Ethylene propylene | |||||||||||||
Specification
| Size | 1/4“ UCR | 1/4” Butt Weld | 3/8”, 1/2" | |
| Cv Value | 0.7 | 0.55 | 0.7 | |
| Max. Working Pressure | FKM | 3000 psig (206 bar) | ||
| FFKM | 1000 psig (68 bar) | |||
| Max. Working Temperature | -10~80°C (14~176°F) | |||
| Nominal Cracking Pressure | ≤ 2 psig (0.14 bar) | |||
| Reseal Pressure | ≤ 2 psig (0.14 bar) | |||
| External Leakage Allowance - He (Holding Time - Min 1 min) |
≤ 1x10-9 atm.cc/s | |||
| VCCA Series Check Valve not operated for a certain period of time, | ||||
Features
Fully welded and compact designed body with minimal dead space Body material comply with SEMI F-20, “Specification 316LSS Materials for UHP (Ultra High Purity) Grade Semiconductor Manufacturing Applications” Hastelloy® spring material with high corrosion resistance Noise free operation Broaden choice of end connection.
