CGA series

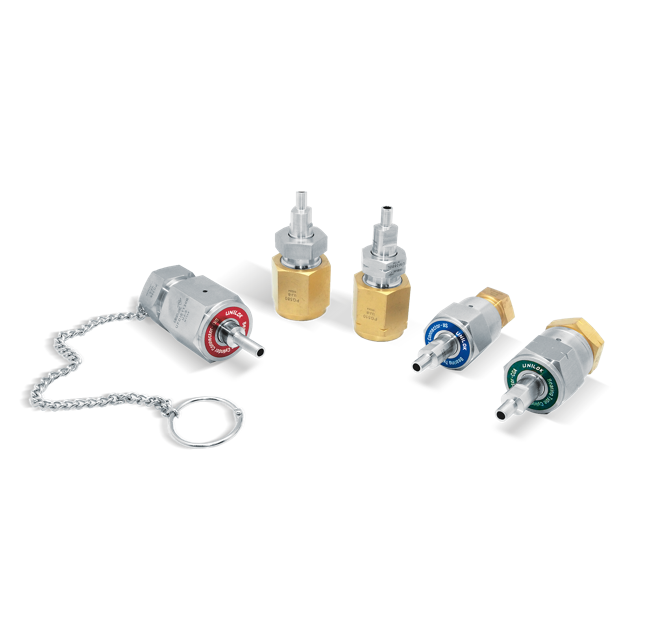

CGA Assembly

카테고리

  • UHP | Fittings | Cylinder Connectors | CGA Assembly

PDF 다운로드

Catalog 다운로드
  • Dimensions
  • How to order
  • Gases Assignment Table
  • Features

Dimensions

▶Glands (Type A, Type B, Type C )




Type AType BType C
Part No.Dimension (mm)Part No.Dimension (mm)Part No.Dimension (mm)
ABCDABCDABCD
BUGL-06S65.310.004.356.35BUGL-01S52.510.004.356.35BUGL-04S66.210.004.356.35
BUGL-08S65.3BUGL-02S55.5BUGL-05S66.8
BUGL-03S58.0BUGL-09S66.7
BUGL-07S66.1
BUGL-10S66.7
BUGL-11S55.5


▶Bearings                                                                                                ▶Gaskets





Part No.Dimension (mm)Part No.Dimension (mm)Part No.Dimension (mm)
ABCABCABC
EBR-0112.818.55.7CGT-01A6.616.83.0CGT-01B7.515.41.6
EBR-0212.823.59.0CGT-02A10.317.3CGT-05B8.013.5
CGT-03A9.721.5PTFE instead of PCTFE is available upon request.
To order, add - TF to the end of part number.
Example : CGT-02A-TF


▶Female nuts                                                                                              ▶Male nuts



Part No.Dimension (mm)ThreadPart No.Dimension (mm)Thread
AB (Hex)AB (Hex)
EFN-0830L35.0030.160.830-14NGO-LH-INTEMN-0803R29.0023.810.803-14UNS-2A-RH-EXT
EFN-0830R35.0030.160.830-14NGO-RH-INTEMN-0880L29.0023.810.880-14NGO-LH-EXT
EFN-0908R35.0030.160.908-14NGO-RH-INTEMN-0960L29.0026.980.960-14NGO-LH-EXT
EFN-1035L36.0031.751.035-14NGO-LH-INTEMN-0960R29.0026.980.960-14NGO-RH-EXT
EFN-1035R36.0031.751.035-14NGO-RH-INT
EFN-JS21L35.0030.16JIS21-14-OL
EFN-JS21R35.0030.16JIS21-14-OR
EFN-JS22L35.0030.16JIS22-14-OL
EFN-JS22R35.0030.16JIS22-14-OR
EFN-JS23R35.0030.16JIS23-14-OR
EFN-JS26L36.0031.75JIS26-14-OL
EFN-JS26R36.0031.75JIS26-14-OR








▶Female plugs                                                                                              ▶Male plugs

Part No.Dimension (mm)ThreadPart No.Dimension (mm)Thread
AB (Hex)AB (Hex)
EPG-29632.5026.980.803-14UNS-2B-RH-INTEPG-32031.023.810.825-14NGO-RH-EXT
EPG-51032.5030.160.885-14NGO-LH-INTEPG-32630.023.810.825-14NGO-RH-EXT
EPG-58032.5031.750.965-14NGO-RH-INTEPG-33031.023.810.825-14NGO-LH-EXT
EPG-59032.5031.750.965-14NGO-LH-INTEPG-35030.023.810.825-14NGO-LH-EXT
EPG-54030.026.980.903-14NGO-RH-EXT
EPG-66026.028.571.030-14NGO-RH-EXT
EPG-67026.028.571.030-14NGO-LH-EXT
EPG-67826.028.571.030-14NGO-LH-EXT
EPG-67926.028.571.030-14NGO-LH-EXT
EPG-21R31.023.81JIS21-14-OR
EPG-21L31.023.81JIS21-14-OL
EPG-22R31.023.81JIS22-14-OR
EPG-22L31.023.81JIS22-14-OL
EPG-23R31.025.4JIS23-14-OR
EPG-26R31.028.57JIS26-14-OR
EPG-26L31.028.57JIS26-14-OL

How to order

CGA Series

CGA
No.
Type Ordering Part Number
Assembled Gland Gland "L"  Bearing Nut Nut Gasket Gasket Plug Plug
Set inch mm Thread Hex Flat Material Thread
296 UCC-C296L10-DM-EP A UCC-C296 BUGL-08S 2.57 65.3 X EMN-0803R 0.803-14UNS-2A-RH-EXT 23.81 X X EPG-296 0.803-14UNS-2B-RH-INT
320 UCC-C320L10-DM-EP B UCC-C320 BUGL-01S 2.07 52.5 EBR-01 EFN-0830R 0.830-14NGO-RH-INT 30.16 CGT-01A PCTFE/R EPG-320 0.825-14NGO-RH-EXT
326 UCC-C326L10-DM-EP C UCC-C326 BUGL-04S 2.61 66.2 EBR-01 EFN-0830R 0.830-14NGO-RH-INT 30.16 X X EPG-326 0.825-14NGO-RH-EXT
330 UCC-C330L10-DM-EP B UCC-C330 BUGL-01S 2.07 52.5 EBR-01 EFN-0830L 0.830-14NGO-LH-INT 30.16 CGT-01A PCTFE/R EPG-330 0.825-14NGO-LH-EXT
350 UCC-C350L10-DM-EP C UCC-C350 BUGL-05S 2.63 66.8 EBR-01 EFN-0830L 0.830-14NGO-LH-INT 30.16 X X EPG-350 0.825-14NGO-LH-EXT
510 UCC-C510L10-DM-EP A UCC-C510 BUGL-06S 2.57 65.3 X EMN-0880L 0.880-14NGO-LH-EXT 23.81 X X EPG-510 0.885-14NGO-LH-INT
540 UCC-C540L10-DM-EP C UCC-C540 BUGL-09S 2.63 66.7 EBR-02 EFN-0908R 0.908-14NGO-RH-INT 30.16 X X EPG-540 0.903-14NGO-RH-EXT
580 UCC-C580L10-DM-EP A UCC-C580 BUGL-06S 2.57 65.3 X EMN-0960R 0.960-14NGO-RH-EXT 26.98 X X EPG-580 0.965-14NGO-RH-INT
590 UCC-C590L10-DM-EP A UCC-C590 BUGL-06S 2.57 65.3 X EMN-0960L 0.960-14NGO-LH-EXT 26.98 X X EPG-590 0.965-14NGO-LH-INT
660 UCC-C660L10-DM-EP B UCC-C660 BUGL-03S 2.28 58 EBR-02 EFN-1035R 1.035-14NGO-RH-INT 31.75 CGT-03A PCTFE/R EPG-660 1.030-14NGO-RH-EXT
670 UCC-C670L10-DM-EP B UCC-C670 BUGL-03S 2.28 58 EBR-02 EFN-1035L 1.035-14NGO-LH-INT 31.75 CGT-03A PCTFE/R EPG-670 1.030-14NGO-LH-EXT
678 UCC-C678L10-DM-EP B UCC-C678 BUGL-07S 2.6 66 EBR-02 EFN-1035L 1.035-14NGO-LH-INT 31.75 EGT-01B PCTFE EPG-678 1.030-14NGO-LH-EXT
679 UCC-C679L10-DM-EP B UCC-C679 BUGL-10S 2.63 66.7 EBR-02 EFN-1035L 1.035-14NGO-LH-INT 31.75 EGT-05B PCTFE EPG-679 1.030-14NGO-LH-EXT

Gases Assignment Table

GASCGAJISDISSGASCGAJISDISS
Ammonia66022-R720Hydrogen35022-L724
Argon58022/23-R718Hydrogen Bromide33026-R634
Arsenic Pentafluoride  642Hydrogen Chloride33026-R634
Arsine35022-L632Hydrogen Fluoride66026-R638
Boron Trichloride66022-L634Hydrogen Iodide330 670
Boron Trifluoride33022-L642Hydrogen Selenide350 632
Bromochlorodifluoromethane660  Hydrogen Sulfide330 722
Bromotrifluoromethane660  Isobutane510
Butane51023-L Isobutylene51023-L
Carbon Dioxide320 716Krypton51022/23-R718
Carbon Monoxide35022-L724Neon58022/23-R718
Carbonyl Sulfide330  Nitrogen58022/23-R718
Chlorine66026-R728Nitrous Oxide580 712
Chlorine Trifluoride67026-L Oxygen74022/23-R714
Chlorodifluoromethane660  Perfluonopropane660 716
Chlorotrifluoromethane660  Phosgene66026-R
Diborane35022-L632Phosphine350 632
Dichlorodifluoromethane660 716PhosphorusPentafluoride330 642
Dichlorofluoromethane660  Silane350 632
Dichlorosllane678 636Silioon Tetrachloride  636
Dichlorotetrafluoroethane660  Silicon Tetrafluoride330 642
Diethylzine510 726Sulphur Dioxide10, 16 660
Difluoroethylene35022-L Sulphur Hexafluoride326 716
Dimethylzinc  726Trichorosilane636
Dimethylamine70522/26-L Trichlorotrifluoroethane660 716
Dimethylether51026-L Trichlorofluoromethane660
Disllane632  Triethylaluminium510 726
Ethane35022-L Trifluoromethane660
Ethyl Chloride30026-L Trimethylamine70526-L
Ethylene35022-L Tungsten Hexafluoride670 638
Fluorine67922-R Vinyl Bromide51026-L
Germane350 632Vinyl Chloride51026-L
Halocarbons660 716Vinyl Fluoride35022-L
Helium32622/23-R718Xenon58022/26-L718
Sources : CGA V1 2005, JIS B8244/B8246 1989, ISO/DOS 407 1983
This table is the reference only.

Features

UNILOK® Cylinder Connectors are designed and manufactured for the connection of high purity gases in process applications.
