DISS series
DISS Assembly

카테고리

  • UHP | Fittings | Cylinder Connectors | DISS Assembly

PDF 다운로드

Catalog 다운로드
  • Dimensions
  • How to order
  • Gases Assignment Table
  • Features

Dimensions

▶Glands                                                                                                                                                                 ▶Gaskets




Part No.Dimension (mm) Part No.Dimension (mm)Material
ABCDABC
BUGL-63263.819.054.356.35UGT-D5.414.33.0PCTFE
BUGL-634UNGT-D5.414.33.2Nickel
BUGL-636
BUGL-638
BUGL-640
BUGL-642
BUGL-712
BUGL-714
BUGL-716
BUGL-718
BUGL-720
BUGL-722
BUGL-724
BUGL-726
BUGL-728
3/8" and 1/2" Glands are available for every DISS series. To order, add -06 for 3/8" and -08 for 1/2".
Examples : BUGL-632-06, 3/8" size DISS 632 Gland.







Part No.Dimension (mm)ThreadPart No.Dimension (mm)Thread
AB (Hex)AB (Hex)
EDFN-1035R36.0031.751.035-14NGO-RH-INTEPG-63038.128.571.030-14NGO-RH-EXT
EDFN-1130R36.0034.921.130-14NGO-RH-INTEPG-71039.031.751.125-14NGO-RH-EXT
EPG-720

How to order

Gland + Male Nut + Gasket + Female Plug

Part
No.
DISS
No.
Ordering Part Number
AssembledGlandGland  LHex Flat  BThread (Nut)   CNutGasketPlug
Set inchmminchmmNickelPCTFE
UCC-D632-DM-EP632UCC-D632BDGL-6322.5163.51.2531.751.035-14NGO-RH-INTEDFN-1035RUNGT-DUGT-DEPG-630
UCC-D634-DM-EP634UCC-D634BDGL-634EDFN-1035RUNGT-DUGT-D
UCC-D636-DM-EP636UCC-D636BDGL-636EDFN-1035RUNGT-DUGT-D
UCC-D638-DM-EP638UCC-D638BDGL-638EDFN-1035RUNGT-DUGT-D
UCC-D640-DM-EP640UCC-D640BDGL-640EDFN-1035RUNGT-DUGT-D
UCC-D642-DM-EP642UCC-D642BDGL-642EDFN-1035RUNGT-DUGT-D
UCC-D712-DM-EP712UCC-D712BDGL-7121.3834.921.125-14NGO-RH-INTEDFN-1130RUNGT-DUGT-DEPG-710
UCC-D714-DM-EP714UCC-D714BDGL-714EDFN-1130RUNGT-DUGT-D
UCC-D716-DM-EP716UCC-D716BDGL-716EDFN-1130RUNGT-DUGT-D
UCC-D718-DM-EP718UCC-D718BDGL-718EDFN-1130RUNGT-DUGT-D
UCC-D720-DM-EP720UCC-D720BDGL-720EDFN-1130RUNGT-DUGT-DEPG-720
UCC-D722-DM-EP722UCC-D722BDGL-722EDFN-1130RUNGT-DUGT-D
UCC-D724-DM-EP724UCC-D724BDGL-724EDFN-1130RUNGT-DUGT-D
UCC-D726-DM-EP726UCC-D726BDGL-726EDFN-1130RUNGT-DUGT-D
UCC-D728-DM-EP728UCC-D728BDGL-728EDFN-1130RUNGT-DUGT-D
3/8" and 1/2" Glands are available for every DISS series cylinder connectors. To order, add -06 for 3/8" and -08 for 1/2".
Examples : UCC-D712-08, DISS 712 Cylinder Connector set with 1/2" Gland.

Gases Assignment Table

GASCGAJISDISSGASCGAJISDISS
Ammonia66022-R720Hydrogen35022-L724
Argon58022/23-R718Hydrogen Bromide33026-R634
Arsenic Pentafluoride  642Hydrogen Chloride33026-R634
Arsine35022-L632Hydrogen Fluoride66026-R638
Boron Trichloride66022-L634Hydrogen Iodide330 670
Boron Trifluoride33022-L642Hydrogen Selenide350 632
Bromochlorodifluoromethane660  Hydrogen Sulfide330 722
Bromotrifluoromethane660  Isobutane510
Butane51023-L Isobutylene51023-L
Carbon Dioxide320 716Krypton51022/23-R718
Carbon Monoxide35022-L724Neon58022/23-R718
Carbonyl Sulfide330  Nitrogen58022/23-R718
Chlorine66026-R728Nitrous Oxide580 712
Chlorine Trifluoride67026-L Oxygen74022/23-R714
Chlorodifluoromethane660  Perfluonopropane660 716
Chlorotrifluoromethane660  Phosgene66026-R
Diborane35022-L632Phosphine350 632
Dichlorodifluoromethane660 716PhosphorusPentafluoride330 642
Dichlorofluoromethane660  Silane350 632
Dichlorosllane678 636Silioon Tetrachloride  636
Dichlorotetrafluoroethane660  Silicon Tetrafluoride330 642
Diethylzine510 726Sulphur Dioxide10, 16 660
Difluoroethylene35022-L Sulphur Hexafluoride326 716
Dimethylzinc  726Trichorosilane636
Dimethylamine70522/26-L Trichlorotrifluoroethane660 716
Dimethylether51026-L Trichlorofluoromethane660
Disllane632  Triethylaluminium510 726
Ethane35022-L Trifluoromethane660
Ethyl Chloride30026-L Trimethylamine70526-L
Ethylene35022-L Tungsten Hexafluoride670 638
Fluorine67922-R Vinyl Bromide51026-L
Germane350 632Vinyl Chloride51026-L
Halocarbons660 716Vinyl Fluoride35022-L
Helium32622/23-R718Xenon58022/26-L718
Sources : CGA V1 2005, JIS B8244/B8246 1989, ISO/DOS 407 1983
This table is the reference only.

Features

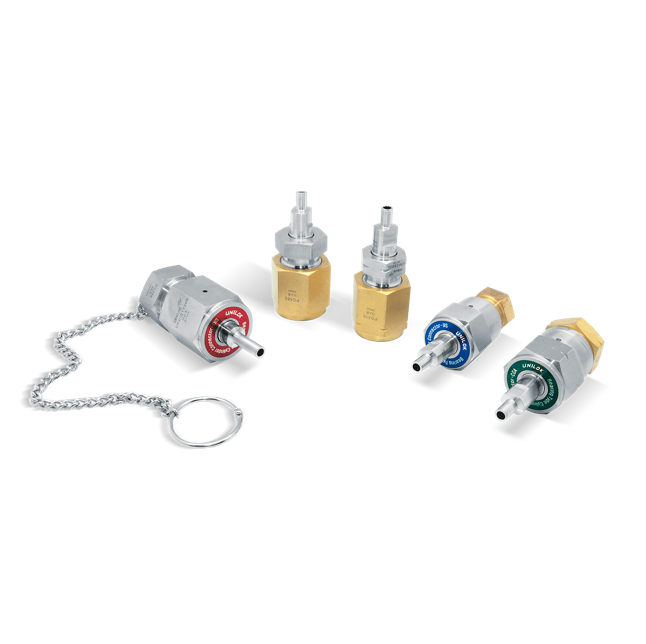

UNILOK® Cylinder Connectors are designed and manufactured for the connection of high purity gases in process applications.
