CBTJ
Joint Cap
카테고리
- UHP | Fittings | Clean Pipe/Tube Fittings & Flanges | Clean Pipe & Tube Fittings
- Dimensions
- How To Order
- Features

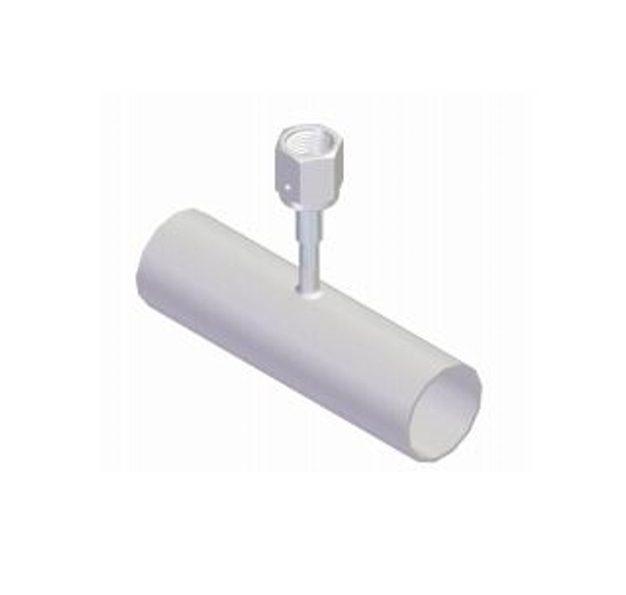

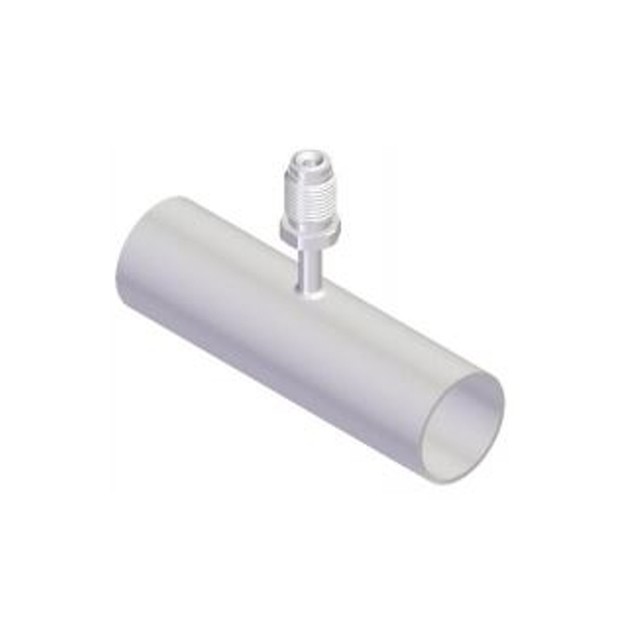

Dimensions
| Pipe Size | Tube Size | |||||||||||||
| Part No. | Pipe O.D. D | Dimension (mm) | Part No. | Tube O.D. D | Dimension (mm) | |||||||||
| L | Female | Male | L | Female | Male | |||||||||
| N.S. | mm | C | C | inch | mm | C | C | |||||||
| CBTJ-10A- | 10A | 17.30 | 52.0 | 37.0 | 47.0 | CBTJ-08- | 1/2 | 12.70 | 45.0 | 35.0 | 45.0 | |||
| CBTJ-15A- | 15A | 21.70 | 52.0 | 39.5 | 49.5 | CBTJ-12- | 3/4 | 19.05 | 52.0 | 38.0 | 48.0 | |||
| CBTJ-20A- | 20A | 27.20 | 55.0 | 42.5 | 52.5 | CBTJ-16- | 1 | 25.40 | 55.0 | 42.0 | 52.0 | |||
| CBTJ-25A- | 25A | 34.00 | 59.0 | 46.5 | 56.5 | CBTJ-20- | 1 1/4 | 31.80 | 59.0 | 45.5 | 55.5 | |||
| CBTJ-32A- | 32A | 42.70 | 68.0 | 51.0 | 61.0 | CBTJ-24- | 1 1/2 | 38.10 | 68.0 | 48.0 | 58.0 | |||
| CBTJ-40A- | 40A | 48.60 | 68.0 | 54.0 | 64.0 | CBTJ-32- | 2 | 50.80 | 68.0 | 55.0 | 65.0 | |||
| CBTJ-50A- | 50A | 60.50 | 68.0 | 60.0 | 70.0 | |||||||||
CBTJ-65A- | 65A | 76.30 | 72.0 | 68.0 | 78.0 | |||||||||
| CBTJ-80A- | 80A | 89.10 | 72.0 | 74.5 | 84.5 | |||||||||
| CBTJ-100A- | 100A | 114.30 | 72.0 | 87.0 | 97.0 | |||||||||
Joint Fittings Ordering Information Every joint fittings are available with 1/4", 3/8" and 1/2" of UNILOK UCR Cap or UCR Plug. To order, add the designators next to part number. Example : CBTJ-25AS05-04CP
| ||||||||||||||||||||||||||||||||||||||||||||
How To Order
| CB | TJ | - | 25A | S05 | - | 04 | M | - | SL | S | - | EP |
| UNILOK Clean Fittings Type | Fitting or Flange Type | Connection Size | Wall Thickness | Connection Size | Connection Type | Material | Method of Manufacture | Surface Finish Level | ||||
| Connection Size & Type | ||||||||||||||
| Fractional(Inch) Tube O.D. Designation | ||||||||||||||
| Tube O.D. | inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 3 | 4 | 5 | 6 |
| mm | 3.17 | 6.35 | 9.52 | 12.70 | 19.05 | 25.40 | 31.80 | 38.10 | 50.80 | 76.20 | 101.60 | 127.00 | 152.40 | |
| Designator | 02 | 04 | 06 | 08 | 12 | 16 | 20 | 24 | 32 | 48 | 64 | 80 | 96 | |
| Connection Size | |||||||||||||||||||
| Tube O.D. | Normal | 8A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A | 125A | 150A | 200A | 250A | 300A | 350A | 400A |
| mm | 13.8 | 17.3 | 21.7 | 27.2 | 34.0 | 42.7 | 48.6 | 60.5 | 76.3 | 89.1 | 114.3 | 139.8 | 165.2 | 216.3 | 267.4 | 318.5 | 355.6 | 406.4 | |
| Designator | 8A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A | 125A | 150A | 200A | 250A | 300A | 350A | 400A | |
| Pipe and tube sizes lager than 100A and 2" are available upon request | |||||||||||||||||||
| Wall Thickness | ||||||||||
| Normal or inch | Pipe | Tube | ||||||||
| 5S | 10S | 0.035 | 0.039 | 0.049 | 0.065 | 0.083 | 0.109 | 0.120 | ||
| mm | - | - | 0.89 | 1.00 | 1.24 | 1.65 | 2.11 | 2.77 | 3.05 | |
| Designator | S05 | S10 | T35 | T100 | T049 | T065 | T083 | T109 | T120 | |
| UNILOK Clean Fittings Type | Connection Type | Material | Method of Manufacture | Surface Finish Level | |||||||||||||||
| CB | Clean Pipe & Tube Fittings | M | Male UCR | S4 | 304SS | S | Seamless | AP | AP | ||||||||||
| CF | Clean Flanges | F | Female UCR | S4L | 304LSS | W | Welded | BA | BA | ||||||||||
| PG | Male UCR Plug | SS | 316SS | EP | EP - Electro Polished | ||||||||||||||
| CP | Female UCR Cap | SL | 316LSS | ||||||||||||||||
Features
UNILOK® Clean Pipe/Tube fittings are designed and manufactured as high performance and high purity components by our own know-how to be accumulated throughout the years.
| Pipe Size O.D. | Wall Thickness T | Straight End Length L | Thinning Length J | Pipe Size O.D. | Wall Thickness T | Straight End Length L | Thinning Length J | ||||||
| 5S | 10S | 5S | 10S | ||||||||||
| Norminal | mm | mm | mm | mm | 1/4 | 6.35 | 1.00(0.89) | 29 | 7 | ||||
| 8A | 13.8 | 1.2 | 1.65 | 29 | 4 | 7 | 3/8 | 9.52 | 1.00(0.89) | 29 | 7 | ||
| 10A | 17.3 | 1.2 | 1.65 | 36 | 4 | 7 | 1/2 | 12.7 | 1.00(1.24/1.65) | 29 | 7 | ||
| 15A | 21.7 | 1.65 | 2.1 | 36 | 5 | 7 | 5/8 | 15.88 | 1.00(1.24) | 36 | 7 | ||
| 20A | 27.2 | 1.65 | 2.1 | 36 | 5 | 7 | 3/4 | 19.05 | 1.65(1.24) | 36 | 7 | ||
| 25A | 34 | 1.65 | 2.8 | 36 | 5 | 7 | 1 | 25.4 | 1.65(1.24) | 36 | 7 | ||
| 32A | 42.7 | 1.65 | 2.8 | 46 | 5 | 7 | 1 1/4 | 31.8 | 1.65 | 36 | 7 | ||
| 40A | 48.6 | 1.65 | 2.8 | 46 | 5 | 7 | 1 1/2 | 38.1 | 1.65 | 46 | 7 | ||
| 50A | 60.5 | 1.65 | 2.8 | 46 | 5 | 7 | 2 | 50.8 | 1.65 | 46 | 7 | ||
| 65A | 76.3 | 2.1 | 3 | 51 | 6 | 11 | 2 1/2 | 63.5 | 1.65 | 51 | 7 | ||
| 80A | 89.1 | 2.1 | 3 | 51 | 6 | 11 | 3 | 76.2 | 1.65 | 51 | 11 | ||
| 100A | 114.3 | 2.1 | 3 | 51 | 6 | 11 | 4 | 101.6 | 2.11 | 51 | 11 | ||
| 125A | 139.8 | 2.8 | 3.4 | - | 7 | - | 5 | 127 | 2.77(3.05) | 56 | 11 | ||
| 150A | 165.2 | 2.8 | 3.4 | - | 7 | - | 6 | 152.4 | 2.77(3.05) | 56 | 11 | ||
| 200A | 216.3 | 2.8 | 4 | - | 7 | - | The tube wall thickness which are indicated in black colors are the standard. The red colored wall thicknesses are available upon request. | ||||||
| 250A | 267.4 | 3.4 | 4 | - | - | - | |||||||
| 300A | 318.5 | 4 | 4.5 | - | - | - | |||||||
| 350A | 355.6 | 4 | 4.8 | - | - | - | |||||||
| 400A | 406.4 | 4.2 | 4.8 | - | - | - | |||||||
| The pipe sizes lager than 100A are welded by manual welding. For more details, contact your local distributor. | |||||||||||||
