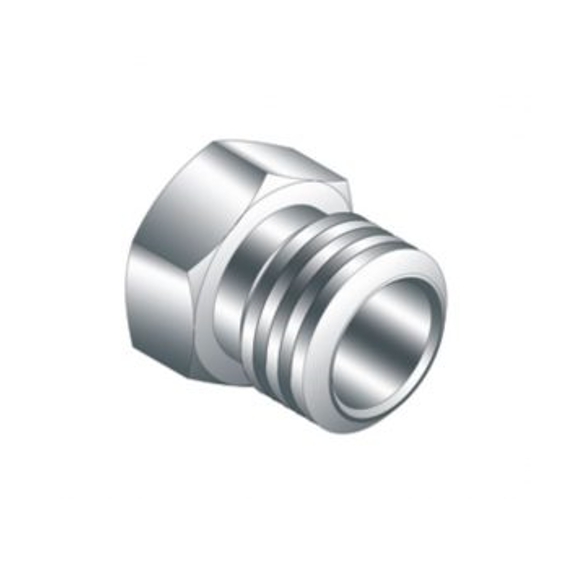

CHMN
HR Male Nut
카테고리
- UHP | Fittings | Weld & Metal Face Seal Fittings | High Flow Components
- Dimensions
- How To Order
- Specification
- Features
Dimensions
| Part No. | UCR Size | Dimension (mm) | M | ||||
| inch | A | E | F | ||||
| CHMN-04- | 1/4 | 18.00 | 9.90 | 15.87 | 9/16-18UNF | ||
How To Order
| C | HMN | - | 04 | - | DM |
| UNILOK Clean Fittings | Fitting Type | Connection Size & Type | Materials | ||
| Connection Size & Type | Materials | |||||||||||
| Fractional(Inch) Tube O.D. Designation | SL | 316LSS | ||||||||||
| Tube O.D. | inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |||||
| mm | 3.17 | 6.35 | 9.52 | 12.7 | 19.05 | 25.4 | ||||||
| Designator | 02 | 04 | 06 | 08 | 12 | 16 | ||||||
Specification
| Materials | Pressure Ratings | Temperature Ratings | |||||||||||
| Materials | Specification | Tube O.D. | Wall Thickness | Pressure Rating | Components | Materials | ℉ | ℃ | |||||
| Glands, Unions, Weld Fittings | psig | bar | Fittings | 316LSS-SEMI F20 | 1000 | 537 | |||||||
| 316LSS-SEMI F20 | ASTM A276 / A479 | 1/4" | 1.00mm | 5200 | 359 | 316LSS | |||||||
| 316LSS | 0.89mm | Gaskets | 316LSS | 1000 | 537 | ||||||||
| Nuts, Plugs, Caps, UCR Threaded Fittings | 3/8" | 1.00mm | 3350 | 231 | Nickel | 600 | 315 | ||||||
| 316LSS | Forging - ASTM A182 Bar Stock - ASTM A276 / A479 | 0.89mm | |||||||||||
| 1/2" | 1.24mm | 3750 | 259 | ||||||||||
| Gaskets | 3/4" | 1.65mm | 3350 | 231 | |||||||||
| Nickel | ASTM B162 | 1" | 1.65mm | 2400 | 265 | ||||||||
| 316LSS | ASTM A240 | 0.89mm(0.035") wall thick fittings are available upon request. When ordering, be sure to add -A to the part number. | |||||||||||
| Both 316LSS-SEMI F20 and 316LSS are UHP[Ultra High Purity] 316LSS material with low Sulfur and Manganese in comply with SEMI F20. | |||||||||||||
Features
UNILOK® Weld & Metal Face Seal (UCR) fittings are designed and manufactured as high performance and high purity components by our own know-how to be accumulated throughout the years. UNILOK® guarantees high quality butt welding between tube and fittings as well as leak free assembly for critical applications.
Internal Surface Finish Levels
| Designator | Surface Finish(㎛) | |
| Average | Maximum | |
| BA | < 0.4 | < 1.6 |
| EP | < 0.125 | < 0.4 |
| Reference Specification : SEMA-90120400B | ||
