▶Female nuts ▶Male nuts
CGA series
CGA Assembly
카테고리
- UHP | Fittings | Cylinder Connectors | CGA Assembly
PDF 다운로드
- Dimensions
- How to order
- Gases Assignment Table
- Features
Dimensions
▶Glands (Type A, Type B, Type C )
| Type A | Type B | Type C | |||||||||||||||||
| Part No. | Dimension (mm) | Part No. | Dimension (mm) | Part No. | Dimension (mm) | ||||||||||||||
| A | B | C | D | A | B | C | D | A | B | C | D | ||||||||
| BUGL-06S | 65.3 | 10.00 | 4.35 | 6.35 | BUGL-01S | 52.5 | 10.00 | 4.35 | 6.35 | BUGL-04S | 66.2 | 10.00 | 4.35 | 6.35 | |||||
| BUGL-08S | 65.3 | BUGL-02S | 55.5 | BUGL-05S | 66.8 | ||||||||||||||
| BUGL-03S | 58.0 | BUGL-09S | 66.7 | ||||||||||||||||
| BUGL-07S | 66.1 | ||||||||||||||||||
| BUGL-10S | 66.7 | ||||||||||||||||||
| BUGL-11S | 55.5 | ||||||||||||||||||
▶Bearings ▶Gaskets
| Part No. | Dimension (mm) | Part No. | Dimension (mm) | Part No. | Dimension (mm) | |||||||||||
| A | B | C | A | B | C | A | B | C | ||||||||
| EBR-01 | 12.8 | 18.5 | 5.7 | CGT-01A | 6.6 | 16.8 | 3.0 | CGT-01B | 7.5 | 15.4 | 1.6 | |||||
| EBR-02 | 12.8 | 23.5 | 9.0 | CGT-02A | 10.3 | 17.3 | CGT-05B | 8.0 | 13.5 | |||||||
| CGT-03A | 9.7 | 21.5 | PTFE instead of PCTFE is available upon request. To order, add - TF to the end of part number. Example : CGT-02A-TF | |||||||||||||
| Part No. | Dimension (mm) | Thread | Part No. | Dimension (mm) | Thread | |||||||||
| A | B (Hex) | A | B (Hex) | |||||||||||
| EFN-0830L | 35.00 | 30.16 | 0.830-14NGO-LH-INT | EMN-0803R | 29.00 | 23.81 | 0.803-14UNS-2A-RH-EXT | |||||||
| EFN-0830R | 35.00 | 30.16 | 0.830-14NGO-RH-INT | EMN-0880L | 29.00 | 23.81 | 0.880-14NGO-LH-EXT | |||||||
| EFN-0908R | 35.00 | 30.16 | 0.908-14NGO-RH-INT | EMN-0960L | 29.00 | 26.98 | 0.960-14NGO-LH-EXT | |||||||
| EFN-1035L | 36.00 | 31.75 | 1.035-14NGO-LH-INT | EMN-0960R | 29.00 | 26.98 | 0.960-14NGO-RH-EXT | |||||||
| EFN-1035R | 36.00 | 31.75 | 1.035-14NGO-RH-INT | |||||||||||
| EFN-JS21L | 35.00 | 30.16 | JIS21-14-OL | |||||||||||
| EFN-JS21R | 35.00 | 30.16 | JIS21-14-OR | |||||||||||
| EFN-JS22L | 35.00 | 30.16 | JIS22-14-OL | |||||||||||
| EFN-JS22R | 35.00 | 30.16 | JIS22-14-OR | |||||||||||
| EFN-JS23R | 35.00 | 30.16 | JIS23-14-OR | |||||||||||
| EFN-JS26L | 36.00 | 31.75 | JIS26-14-OL | |||||||||||
| EFN-JS26R | 36.00 | 31.75 | JIS26-14-OR | |||||||||||
|
▶Female plugs ▶Male plugs
| Part No. | Dimension (mm) | Thread | Part No. | Dimension (mm) | Thread | |||||||||
| A | B (Hex) | A | B (Hex) | |||||||||||
| EPG-296 | 32.50 | 26.98 | 0.803-14UNS-2B-RH-INT | EPG-320 | 31.0 | 23.81 | 0.825-14NGO-RH-EXT | |||||||
| EPG-510 | 32.50 | 30.16 | 0.885-14NGO-LH-INT | EPG-326 | 30.0 | 23.81 | 0.825-14NGO-RH-EXT | |||||||
| EPG-580 | 32.50 | 31.75 | 0.965-14NGO-RH-INT | EPG-330 | 31.0 | 23.81 | 0.825-14NGO-LH-EXT | |||||||
| EPG-590 | 32.50 | 31.75 | 0.965-14NGO-LH-INT | EPG-350 | 30.0 | 23.81 | 0.825-14NGO-LH-EXT | |||||||
| EPG-540 | 30.0 | 26.98 | 0.903-14NGO-RH-EXT | |||||||||||
| EPG-660 | 26.0 | 28.57 | 1.030-14NGO-RH-EXT | |||||||||||
| EPG-670 | 26.0 | 28.57 | 1.030-14NGO-LH-EXT | |||||||||||
| EPG-678 | 26.0 | 28.57 | 1.030-14NGO-LH-EXT | |||||||||||
| EPG-679 | 26.0 | 28.57 | 1.030-14NGO-LH-EXT | |||||||||||
| EPG-21R | 31.0 | 23.81 | JIS21-14-OR | |||||||||||
| EPG-21L | 31.0 | 23.81 | JIS21-14-OL | |||||||||||
| EPG-22R | 31.0 | 23.81 | JIS22-14-OR | |||||||||||
| EPG-22L | 31.0 | 23.81 | JIS22-14-OL | |||||||||||
| EPG-23R | 31.0 | 25.4 | JIS23-14-OR | |||||||||||
| EPG-26R | 31.0 | 28.57 | JIS26-14-OR | |||||||||||
| EPG-26L | 31.0 | 28.57 | JIS26-14-OL | |||||||||||
How to order
CGA Series
| CGA No. |
Type | Ordering Part Number | ||||||||||||
| Assembled | Gland | Gland "L" | Bearing | Nut | Nut | Gasket | Gasket | Plug | Plug | |||||
| Set | inch | mm | Thread | Hex Flat | Material | Thread | ||||||||
| 296 | UCC-C296L10-DM-EP | A | UCC-C296 | BUGL-08S | 2.57 | 65.3 | X | EMN-0803R | 0.803-14UNS-2A-RH-EXT | 23.81 | X | X | EPG-296 | 0.803-14UNS-2B-RH-INT |
| 320 | UCC-C320L10-DM-EP | B | UCC-C320 | BUGL-01S | 2.07 | 52.5 | EBR-01 | EFN-0830R | 0.830-14NGO-RH-INT | 30.16 | CGT-01A | PCTFE/R | EPG-320 | 0.825-14NGO-RH-EXT |
| 326 | UCC-C326L10-DM-EP | C | UCC-C326 | BUGL-04S | 2.61 | 66.2 | EBR-01 | EFN-0830R | 0.830-14NGO-RH-INT | 30.16 | X | X | EPG-326 | 0.825-14NGO-RH-EXT |
| 330 | UCC-C330L10-DM-EP | B | UCC-C330 | BUGL-01S | 2.07 | 52.5 | EBR-01 | EFN-0830L | 0.830-14NGO-LH-INT | 30.16 | CGT-01A | PCTFE/R | EPG-330 | 0.825-14NGO-LH-EXT |
| 350 | UCC-C350L10-DM-EP | C | UCC-C350 | BUGL-05S | 2.63 | 66.8 | EBR-01 | EFN-0830L | 0.830-14NGO-LH-INT | 30.16 | X | X | EPG-350 | 0.825-14NGO-LH-EXT |
| 510 | UCC-C510L10-DM-EP | A | UCC-C510 | BUGL-06S | 2.57 | 65.3 | X | EMN-0880L | 0.880-14NGO-LH-EXT | 23.81 | X | X | EPG-510 | 0.885-14NGO-LH-INT |
| 540 | UCC-C540L10-DM-EP | C | UCC-C540 | BUGL-09S | 2.63 | 66.7 | EBR-02 | EFN-0908R | 0.908-14NGO-RH-INT | 30.16 | X | X | EPG-540 | 0.903-14NGO-RH-EXT |
| 580 | UCC-C580L10-DM-EP | A | UCC-C580 | BUGL-06S | 2.57 | 65.3 | X | EMN-0960R | 0.960-14NGO-RH-EXT | 26.98 | X | X | EPG-580 | 0.965-14NGO-RH-INT |
| 590 | UCC-C590L10-DM-EP | A | UCC-C590 | BUGL-06S | 2.57 | 65.3 | X | EMN-0960L | 0.960-14NGO-LH-EXT | 26.98 | X | X | EPG-590 | 0.965-14NGO-LH-INT |
| 660 | UCC-C660L10-DM-EP | B | UCC-C660 | BUGL-03S | 2.28 | 58 | EBR-02 | EFN-1035R | 1.035-14NGO-RH-INT | 31.75 | CGT-03A | PCTFE/R | EPG-660 | 1.030-14NGO-RH-EXT |
| 670 | UCC-C670L10-DM-EP | B | UCC-C670 | BUGL-03S | 2.28 | 58 | EBR-02 | EFN-1035L | 1.035-14NGO-LH-INT | 31.75 | CGT-03A | PCTFE/R | EPG-670 | 1.030-14NGO-LH-EXT |
| 678 | UCC-C678L10-DM-EP | B | UCC-C678 | BUGL-07S | 2.6 | 66 | EBR-02 | EFN-1035L | 1.035-14NGO-LH-INT | 31.75 | EGT-01B | PCTFE | EPG-678 | 1.030-14NGO-LH-EXT |
| 679 | UCC-C679L10-DM-EP | B | UCC-C679 | BUGL-10S | 2.63 | 66.7 | EBR-02 | EFN-1035L | 1.035-14NGO-LH-INT | 31.75 | EGT-05B | PCTFE | EPG-679 | 1.030-14NGO-LH-EXT |
Gases Assignment Table
| GAS | CGA | JIS | DISS | GAS | CGA | JIS | DISS |
| Ammonia | 660 | 22-R | 720 | Hydrogen | 350 | 22-L | 724 |
| Argon | 580 | 22/23-R | 718 | Hydrogen Bromide | 330 | 26-R | 634 |
| Arsenic Pentafluoride | 642 | Hydrogen Chloride | 330 | 26-R | 634 | ||
| Arsine | 350 | 22-L | 632 | Hydrogen Fluoride | 660 | 26-R | 638 |
| Boron Trichloride | 660 | 22-L | 634 | Hydrogen Iodide | 330 | 670 | |
| Boron Trifluoride | 330 | 22-L | 642 | Hydrogen Selenide | 350 | 632 | |
| Bromochlorodifluoromethane | 660 | Hydrogen Sulfide | 330 | 722 | |||
| Bromotrifluoromethane | 660 | Isobutane | 510 | ||||
| Butane | 510 | 23-L | Isobutylene | 510 | 23-L | ||
| Carbon Dioxide | 320 | 716 | Krypton | 510 | 22/23-R | 718 | |
| Carbon Monoxide | 350 | 22-L | 724 | Neon | 580 | 22/23-R | 718 |
| Carbonyl Sulfide | 330 | Nitrogen | 580 | 22/23-R | 718 | ||
| Chlorine | 660 | 26-R | 728 | Nitrous Oxide | 580 | 712 | |
| Chlorine Trifluoride | 670 | 26-L | Oxygen | 740 | 22/23-R | 714 | |
| Chlorodifluoromethane | 660 | Perfluonopropane | 660 | 716 | |||
| Chlorotrifluoromethane | 660 | Phosgene | 660 | 26-R | |||
| Diborane | 350 | 22-L | 632 | Phosphine | 350 | 632 | |
| Dichlorodifluoromethane | 660 | 716 | PhosphorusPentafluoride | 330 | 642 | ||
| Dichlorofluoromethane | 660 | Silane | 350 | 632 | |||
| Dichlorosllane | 678 | 636 | Silioon Tetrachloride | 636 | |||
| Dichlorotetrafluoroethane | 660 | Silicon Tetrafluoride | 330 | 642 | |||
| Diethylzine | 510 | 726 | Sulphur Dioxide | 10, 16 | 660 | ||
| Difluoroethylene | 350 | 22-L | Sulphur Hexafluoride | 326 | 716 | ||
| Dimethylzinc | 726 | Trichorosilane | 636 | ||||
| Dimethylamine | 705 | 22/26-L | Trichlorotrifluoroethane | 660 | 716 | ||
| Dimethylether | 510 | 26-L | Trichlorofluoromethane | 660 | |||
| Disllane | 632 | Triethylaluminium | 510 | 726 | |||
| Ethane | 350 | 22-L | Trifluoromethane | 660 | |||
| Ethyl Chloride | 300 | 26-L | Trimethylamine | 705 | 26-L | ||
| Ethylene | 350 | 22-L | Tungsten Hexafluoride | 670 | 638 | ||
| Fluorine | 679 | 22-R | Vinyl Bromide | 510 | 26-L | ||
| Germane | 350 | 632 | Vinyl Chloride | 510 | 26-L | ||
| Halocarbons | 660 | 716 | Vinyl Fluoride | 350 | 22-L | ||
| Helium | 326 | 22/23-R | 718 | Xenon | 580 | 22/26-L | 718 |
| Sources : CGA V1 2005, JIS B8244/B8246 1989, ISO/DOS 407
1983 This table is the reference only. | |||||||
Features

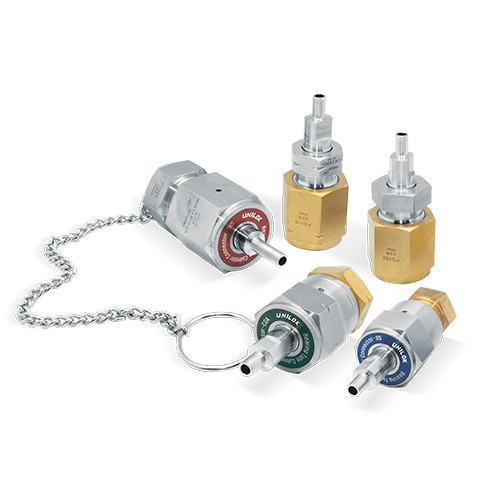

UNILOK® Cylinder Connectors are designed and manufactured for the connection of high purity gases in process applications.
