- Dimensions
- Ordering Information
- Specification

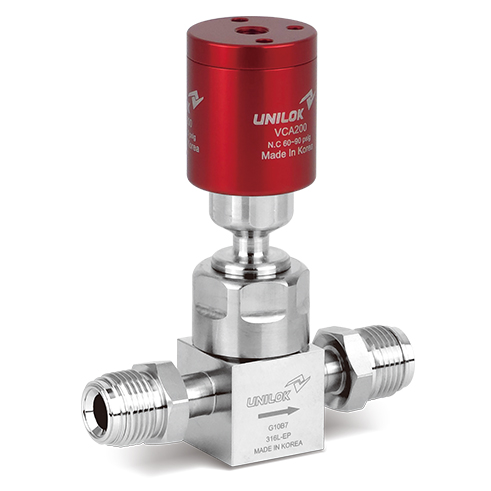

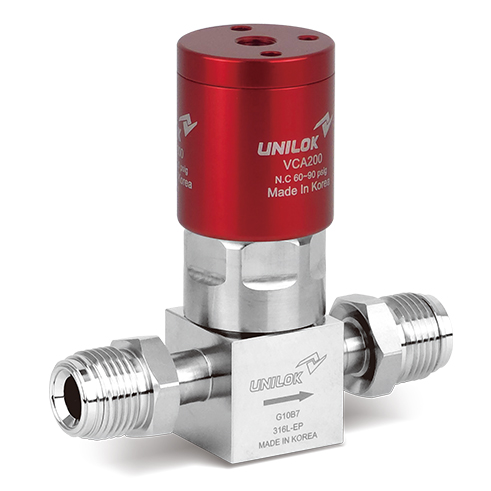

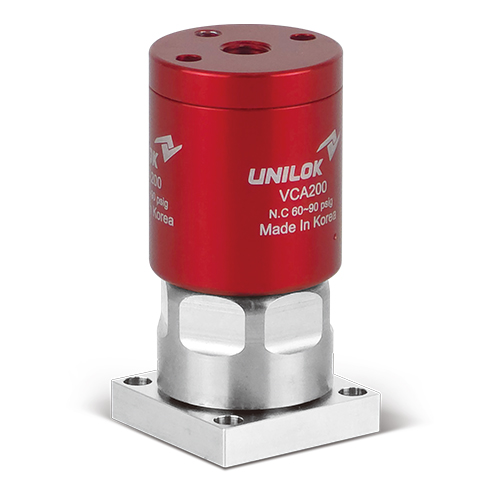

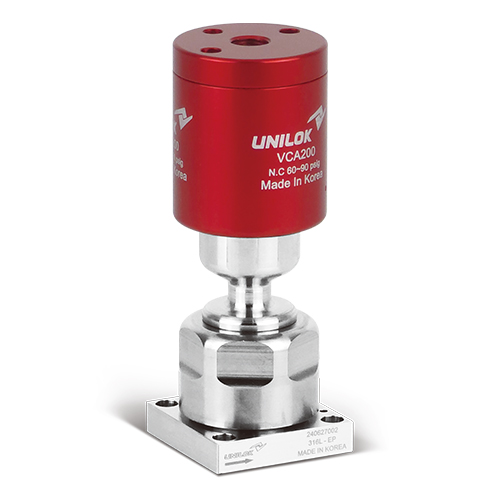

Dimensions
| Type | Part Number | A | B | C | D | E | H |
| UCR | VCA200-08M | 31.8 | Four M5 Tap P.C.D 25.4 | 37.8 | 106 | 18.3 | 100 mm (Normal Type) 125.6 mm (High Temp. Type) |
| VCA200-08F | 31.8 | Four M5 Tap P.C.D 25.4 | 37.8 | 106 | 18.3 |
Ordering Information
| Part Number | Connection Option | Max Temp. Option | Sensor Option | Operation Type | |||
| Size | Type | Port | |||||
| VCA200 | 15
: 1.125“ 08 : 1/2“ | W
: W-Seal C : C-Seal M : UCR Male F : UCR Female | 2
: 2 Port 3 : 3 Port | 1
: 120°C 2 : 200°C | 1
: N/A 2 : Actuator Sensor | 1
: Pneumatic N.C 2 : Pneumatic N.O | |
Specification
| Cv Value | 0.62 | ||
| Working Pressure | Vacuum to 145 psig | ||
| Max. Working Temp | Normal Type : 0~120°C(32~248°F) High Temp. Type : 0~200°C(32~392°F) | ||
| Inboard leakage Allowance-He | ≤ 1x10-9 atm.cc/s | ||
| Internal leakage Allowance-He | ≤ 1x10-9 atm.cc/s | ||
| Materials | Body | 316L VAR SS | |
| Actuator | ALUMINUM | ||
