JIS series

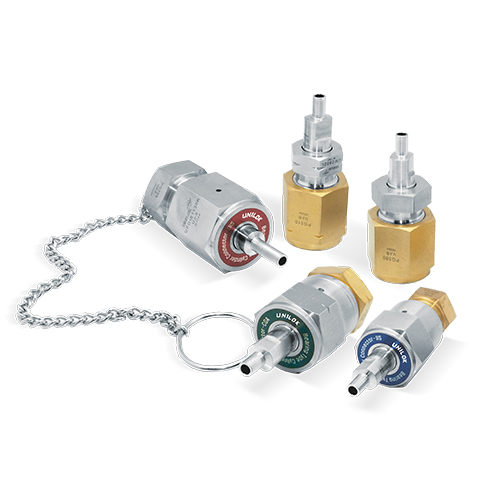

JIS Assembly

카테고리

  • UHP | Fittings | Cylinder Connectors | JIS Assembly

PDF 다운로드

Catalog 다운로드
  • Dimensions
  • How to order
  • Gases Assignment Table
  • Features

Dimensions

▶Glands (Type A, Type B, Type C )




Type AType BType C
Part No.Dimension (mm)Part No.Dimension (mm)Part No.Dimension (mm)
ABCDABCDABCD
BUGL-06S65.310.004.356.35BUGL-01S52.510.004.356.35BUGL-04S66.210.004.356.35
BUGL-08S65.3BUGL-02S55.5BUGL-05S66.8
BUGL-03S58.0BUGL-09S66.7
BUGL-07S66.1
BUGL-10S66.7
BUGL-11S55.5
　　　　　　　　　　　　　　　　　　　　

▶Bearings                                                                                                ▶Gaskets





Part No.Dimension (mm)Part No.Dimension (mm)Part No.Dimension (mm)
ABCABCABC
EBR-0112.818.55.7CGT-01A6.616.83.0CGT-01B7.515.41.6
EBR-0212.823.59.0CGT-02A10.317.3CGT-05B8.013.5
CGT-03A9.721.5PTFE instead of PCTFE is available upon request.
To order, add - TF to the end of part number.
Example : CGT-02A-TF

　　　　　　　　　　　　　　　　　　　

▶Female nuts                                                                                              ▶Male nuts



Part No.Dimension (mm)ThreadPart No.Dimension (mm)Thread
AB (Hex)AB (Hex)
EFN-0830L35.0030.160.830-14NGO-LH-INTEMN-0803R29.0023.810.803-14UNS-2A-RH-EXT
EFN-0830R35.0030.160.830-14NGO-RH-INTEMN-0880L29.0023.810.880-14NGO-LH-EXT
EFN-0908R35.0030.160.908-14NGO-RH-INTEMN-0960L29.0026.980.960-14NGO-LH-EXT
EFN-1035L36.0031.751.035-14NGO-LH-INTEMN-0960R29.0026.980.960-14NGO-RH-EXT
EFN-1035R36.0031.751.035-14NGO-RH-INT
EFN-JS21L35.0030.16JIS21-14-OL
EFN-JS21R35.0030.16JIS21-14-OR
EFN-JS22L35.0030.16JIS22-14-OL
EFN-JS22R35.0030.16JIS22-14-OR
EFN-JS23R35.0030.16JIS23-14-OR
EFN-JS26L36.0031.75JIS26-14-OL
EFN-JS26R36.0031.75JIS26-14-OR
　　　　　　　　　　　　　　　　　　　　



　

　　　　　　　　　　　　　　　　　　

▶Female plugs                                                                                              ▶Male plugs

Part No.Dimension (mm)ThreadPart No.Dimension (mm)Thread
AB (Hex)AB (Hex)
EPG-29632.5026.980.803-14UNS-2B-RH-INTEPG-32031.023.810.825-14NGO-RH-EXT
EPG-51032.5030.160.885-14NGO-LH-INTEPG-32630.023.810.825-14NGO-RH-EXT
EPG-58032.5031.750.965-14NGO-RH-INTEPG-33031.023.810.825-14NGO-LH-EXT
EPG-59032.5031.750.965-14NGO-LH-INTEPG-35030.023.810.825-14NGO-LH-EXT
EPG-54030.026.980.903-14NGO-RH-EXT
EPG-66026.028.571.030-14NGO-RH-EXT
EPG-67026.028.571.030-14NGO-LH-EXT
EPG-67826.028.571.030-14NGO-LH-EXT
EPG-67926.028.571.030-14NGO-LH-EXT
EPG-21R31.023.81JIS21-14-OR
EPG-21L31.023.81JIS21-14-OL
EPG-22R31.023.81JIS22-14-OR
EPG-22L31.023.81JIS22-14-OL
EPG-23R31.025.4JIS23-14-OR
EPG-26R31.028.57JIS26-14-OR
EPG-26L31.028.57JIS26-14-OL

How to order

JIS Series

JIS No. Type Ordering Part Number
Assembled Gland Gland "L" Bearing Nut Nut Gasket Gasket Plug Plug
Set inch mm Thread Hex Flat Material Thread
21-14-L UCC-J2114LL10-DM-EP B UCC-J2114L BUGL-11S 2.19 55.5 EBR-01 EFN-JS21L JIS21-14-OL 30.16 CGT-02A PCTFE/R EPG-21L JIS21-14-OL
21-14-R UCC-J2114RL10-DM-EP B UCC-J2114R BUGL-11S 2.19 55.5 EBR-01 EFN-JS21R JIS21-14-OR 30.16 CGT-02A PCTFE/R EPG-21R JIS21-14-OR
22-14-L UCC-J2214LL10-DM-EP B UCC-J2214L BUGL-02S 2.19 55.5 EBR-01 EFN-JS22L JIS22-14-OL 30.16 CGT-02A PCTFE/R EPG-22L JIS22-14-OL
22-14-R UCC-J2214RL10-DM-EP B UCC-J2214R BUGL-02S 2.19 55.5 EBR-01 EFN-JS22R JIS22-14-OR 30.16 CGT-02A PCTFE/R EPG-22R JIS22-14-OR
23-14-R UCC-J2314RL10-DM-EP B UCC-J2314R BUGL-02S 2.19 55.5 EBR-01 EFN-JS23R JIS23-14-OR 30.16 CGT-02A PCTFE/R EPG-23R JIS23-14-OR
26-14-L UCC-J2614LL10-DM-EP B UCC-J2614L BUGL-03S 2.28 58 EBR-02 EFN-JS26L JIS26-14-OL 31.75 CGT-03A PCTFE/R EPG-26L JIS26-14-OL
26-14-R UCC-J2614RL10-DM-EP B UCC-J2614R BUGL-03S 2.28 58 EBR-02 EFN-JS26R JIS26-14-OR 31.75 CGT-03A PCTFE/R EPG-26R JIS26-14-OR

Gases Assignment Table

GASCGAJISDISSGASCGAJISDISS
Ammonia66022-R720Hydrogen35022-L724
Argon58022/23-R718Hydrogen Bromide33026-R634
Arsenic Pentafluoride　　642Hydrogen Chloride33026-R634
Arsine35022-L632Hydrogen Fluoride66026-R638
Boron Trichloride66022-L634Hydrogen Iodide330　670
Boron Trifluoride33022-L642Hydrogen Selenide350　632
Bromochlorodifluoromethane660　　Hydrogen Sulfide330　722
Bromotrifluoromethane660　　Isobutane510　　
Butane51023-L　Isobutylene51023-L　
Carbon Dioxide320　716Krypton51022/23-R718
Carbon Monoxide35022-L724Neon58022/23-R718
Carbonyl Sulfide330　　Nitrogen58022/23-R718
Chlorine66026-R728Nitrous Oxide580　712
Chlorine Trifluoride67026-L　Oxygen74022/23-R714
Chlorodifluoromethane660　　Perfluonopropane660　716
Chlorotrifluoromethane660　　Phosgene66026-R　
Diborane35022-L632Phosphine350　632
Dichlorodifluoromethane660　716PhosphorusPentafluoride330　642
Dichlorofluoromethane660　　Silane350　632
Dichlorosllane678　636Silioon Tetrachloride　　636
Dichlorotetrafluoroethane660　　Silicon Tetrafluoride330　642
Diethylzine510　726Sulphur Dioxide10, 16　660
Difluoroethylene35022-L　Sulphur Hexafluoride326　716
Dimethylzinc　　726Trichorosilane636　　
Dimethylamine70522/26-L　Trichlorotrifluoroethane660　716
Dimethylether51026-L　Trichlorofluoromethane660　　
Disllane632　　Triethylaluminium510　726
Ethane35022-L　Trifluoromethane660　　
Ethyl Chloride30026-L　Trimethylamine70526-L　
Ethylene35022-L　Tungsten Hexafluoride670　638
Fluorine67922-R　Vinyl Bromide51026-L　
Germane350　632Vinyl Chloride51026-L　
Halocarbons660　716Vinyl Fluoride35022-L　
Helium32622/23-R718Xenon58022/26-L718
Sources : CGA V1 2005, JIS B8244/B8246 1989, ISO/DOS 407 1983
This table is the reference only.

Features

UNILOK® Cylinder Connectors are designed and manufactured for the connection of high purity gases in process applications.
