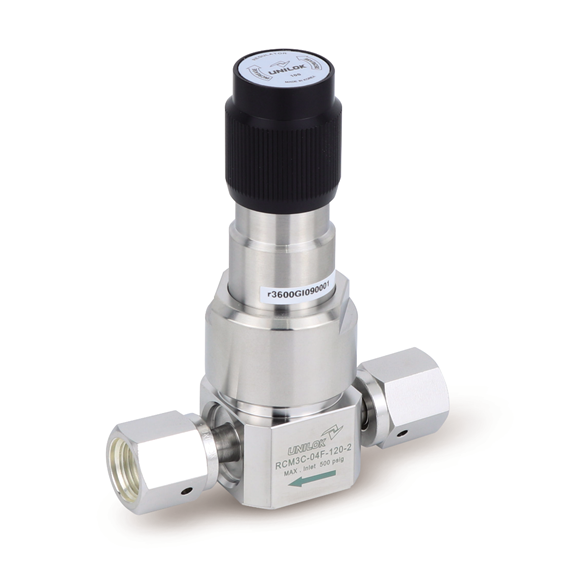

RCM3 series
Non-Tied Diaphragm, Compact Size
카테고리
- UHP | Regulator | RCM3 series
PDF 다운로드
- Dimensions
- How To Order
- Specification
- Features
Dimensions
| Part No. | End Connection | Dimensions(mm) | |||
| Inlet | Outlet | L ± 1 | |||
| RCM3 | C-04M- | 1/4" Male UCR Swivel | 73.8 | ||
| C-04MX- | 1/4" Male UCR Fixed | 70.6 | |||
| C-04F- | 1/4” Female UCR Swivel | 70.6 | |||
| WB-04T- | 1/4” Tube Butt Weld | 57.0 | |||
How To Order
| RCM3 | C | - | 04F | - | 11 | 0 | - | 2 | ||||
| Regulator Type | Connection Type | Connection Size | Inlet / Outlet Pressure | Gauge Port Option | Outlet Gauge | Body Material | Surface Finish | Trim Material | Seat Material | |||
| Regulator Type | Outlet Pressure Range | Body Material | |||||||||||
| RCM3 | RCM3 Series | 0 | 1~30 psig / 0.1~2.1 bar | 2 | 316L VAR Stainless Steel | ||||||||
| 1 | 1~60 psig / 0.1~4.1 bar | 4 | 316L Stainless Steel | ||||||||||
| Connection Type | 2 | 1~100 psig / 0.1~6.9 bar | |||||||||||
| C-*M | Male UCR Swivel | 3 | 1~150 psig / 0.1~10.3 bar | Internal Surface Finish | |||||||||
| C-*MX | Male UCR Fixed | None | EP – Electro Polished | ||||||||||
| C-*F | Female UCR Swivel | Gauge Port Option | BA | BA | |||||||||
| WB-*T | Tube Butt Weld | 0 | None (Fig. A) | ||||||||||
| 1 | 1/4“ Male Swivel (Fig. B) | Trim Material | |||||||||||
| Connection Size | 2 | 1/4“ Female Swivel (Fig. B) | None | 316 SS | |||||||||
| 04 | 1/4 inch | H | Hastelloy® | ||||||||||
| Outlet Gauge | |||||||||||||
| Maximum Inlet Pressure | None | No Gauge | Seat Material | ||||||||||
| 1 | 500 psig (0.1 Cv) | 0 | 0~30 psig | None | PCTFE | ||||||||
| 2 | 250 psig (0.1 Cv) | 1 | 0~60 psig | T | PTFE | ||||||||
| 4 | 500 psig (0.17 Cv) | 2 | 0~100 psig | F | PFA | ||||||||
| 5 | 250 psig (0.17 Cv) | 3 | 0~160 psig | ||||||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 250, 500 psig (17.3, 34.5 bar) | Body | 316L Stainless Steel | ||
| Diaphragm | Hastelloy® | ||||
| Outlet Pressure Range | 30, 60, 100, 150 psig (2.1, 4.1, 6.9, 10.3 bar) | Seat | PCTFE (Optional PTFE, PFA) | ||
| Poppet | 316 Stainless Steel or Inconel® | ||||
| Design Proof Pressure | 150% of maximum rated | Rear Seal | 316L Stainless Steel or Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -40~60℃ (-40℉~140℉) | Designator | Surface Finish(µm) | ||
| PTFE Seat | -40~71℃ (-40℉~160℉) | Average | Maximum | ||
| PFA Seat | -40~71℃ (-40℉~160℉) | BA | ＜ 0.4 | ＜ 1.6 | |
| EP | ＜ 0.125 | ＜ 0.4 | |||
| Flow Capacity | |||||
| Flow Capacity | 0.1 Cv (Optional 0.17 Cv) | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec | ||||
Features
· The RCM3 series, an ultra high purity pressure reducing regulator, provides precise performance and repeatability
· Compact size
· Low internal volume
· Metal to metal diaphragm seals provide enhanced leak integrity
· Optimum performance and cleanliness at a great value
· All performed in Class 100 and Class 10 clean rooms.
Flow Chart
