- Dimensions
- How To Order
- Specification
- Features
Dimensions
| Part No. | End Connection | Dimensions(mm) | |||
| Inlet | Outlet | L ± 1.5 | |||
| RCIB4* | C-04MX- | 1/4” Male UCR Fixed | 152.4 | ||
| C-04F- | 1/4” Female UCR Swivel | 142 | |||
| C-04MXF- | 1/4” Male UCR Fixed | 1/4” Female UCR Swivel | 142 | ||
| C-04FMX- | 1/4” Female UCR Swivel | 1/4” Male UCR Fixed | 152.4 | ||
How To Order
| RCIB4 | 5 | C | - | 04MF | - | 11 | 2 | 1 | - | 2 | H | ||
| Regulator Type | Valve Type | Connection Type | Connection Size | Inlet /Outlet Pressure | Gauge Port Option | Outlet Gauge | Body Material | Surface Finish | Trim Material | Seat Material | |||
| Regulator Type | Connection Size | Outlet Gauge | |||||||||||
| RCIB4 | RCIB4 series | 04 | 1/4 inch | None | No Gauge | ||||||||
| 0 | 0~30 psig | ||||||||||||
| Valve Type | Maximum Inlet Pressure | 1 | 0~60 psig | ||||||||||
| 1 | Inlet manual
valve outlet regulator (Figure A) | 1 | 150 psig (0.04 Cv) | 2 | 0~100 psig | ||||||||
| 2 | 125 psig (0.04 Cv) | 3 | 0~160 psig | ||||||||||
| 2 | Outlet
manual valve inlet regulator (Figure B) | 4 | 150 psig (0.08 Cv) | ||||||||||
| 5 | 125 psig (0.08 Cv) | Body Material | |||||||||||
| 3 | Inletpneumatic
valve outlet regulator (Figure A) | 2 | 316L VAR Stainless Steel | ||||||||||
| Outlet Pressure Range | |||||||||||||
| 4 | Outlet
pneumatic valve inlet regulator (Figure B) | 0 | 1~30 psig / 0.1~2.1 bar | Internal Surface Finish | |||||||||
| 1 | 1~60 psig / 0.1~4.1 bar | None | EP – Electro Polished | ||||||||||
| 5 | Inlet LOTO
valve outlet regulator (Figure A) | 2 | 1~100 psig / 0.1~6.9 bar | BA | BA | ||||||||
| 6 | Outlet LOTO
valve inlet regulator (Figure B) | Gauge Port Option | Trim Material | ||||||||||
| 1 | 1/4“ Male Swivel | H | Hastelloy® | ||||||||||
| 2 | 1/4“ Female Swivel | ||||||||||||
| Connection Type | Seat Material | ||||||||||||
| C-*MX | Male UCR Fixed | None | PCTFE | ||||||||||
| C-*F | Female UCR Swivel | F | PFA | ||||||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 125, 150 psig (8.6, 10.3 bar) | Body | 316L VAR Stainless Steel | ||
| Diaphragm regulator | Hastelloy® | ||||
| Outlet Pressure Range | 30, 60, 100 psig (2.1, 4.1, 6.9 bar | Diaphragm Valve | Elgiloy® | ||
| Seat | PCTFE (Optional PFA) | ||||
| Design Proof Pressure | 150% of maximum rated | Poppet | Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -40~60℃ (-40℉~140℉) | Designator | Surface Finish(µm) | ||
| PFA Seat | -40~71℃ (-40℉~160℉) | Average | Maximum | ||
| BA | ＜ 0.4 | ＜ 1.6 | |||
| Flow Capacity | EP | ＜ 0.125 | ＜ 0.4 | ||
| Flow Capacity | 0.04 Cv (Optional 0.08 Cv) | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec He | ||||
Features

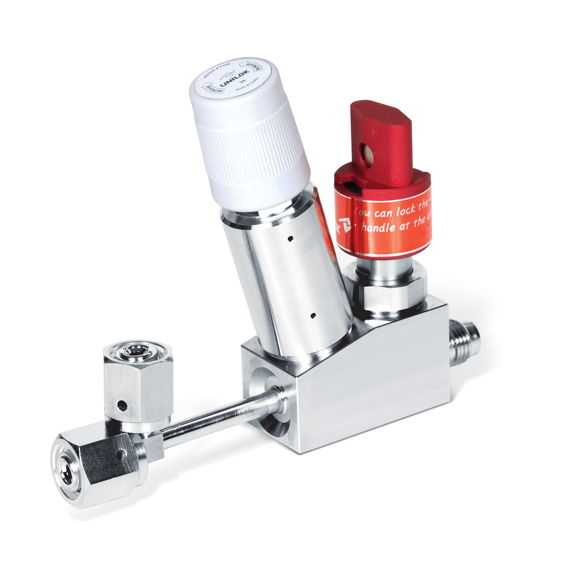

· The RCIB4 series, an ultra high purity tied diaphragm pressure-reducing regulator with a diaphragm valve mounted, provides a single body construction
· Compact size
· Tied diaphragm RCI series regulator
· The internal springless and threadless design, along with low internal volume, minimizes particles
· Metal to metal diaphragm seals provide enhanced leak integrity
· Optimum performance and cleanliness at a great value
· All performed in Class 100 and Class 10 clean rooms.
Flow Chart
